When RC rock crawling first took off, the standard mounting location for the steering servo was on the front axle – most often right on top. As the segment shifted toward scale crawlers, people started figuring out how to mount the steering servo on the chassis. This setup was far more realistic looking. The servo mounted to the chassis frame rail just like a full-size truck’s power steering box and the servo horn worked and looked like a pitman arm. Soon every scale rig had a chassis mounted servo (CMS).

It wasn’t long, however, before scale crawlers started to push the proverbial performance envelope. More and more performance was being built into scalers as scale comps took over in popularity, and as performance became a primary focus, some builders were finding ways to mount servos to scale axles that were never meant to accommodate a servo.

The Axial SCX10 Pro offers builders both options. To help you decide which option is best for your SCX10 Pro, we’ve outlined the pros and cons of each setup.

AMS
AMS
AMS
AMS
AMS

Axle-Mounted Servo (AMS)

The SCX10 Pro uses a mounting system that places the servo behind the axle. This even further lowers the center of gravity, offers increased protection, and does a better job of hiding the servo for better scale looks. In addition to the improved center of gravity, the SCX10 Pro uses a 4-link suspension with the AMS setup.

PROS

  • Lower center of gravity
  • More steering power and control
  • Better suspension and steering geometry

CONS

  • Less scale in appearance
  • Servo more vulnerable to damage
  • Loss of scale points in competition

CMS
CMS
CMS
CMS
CMS

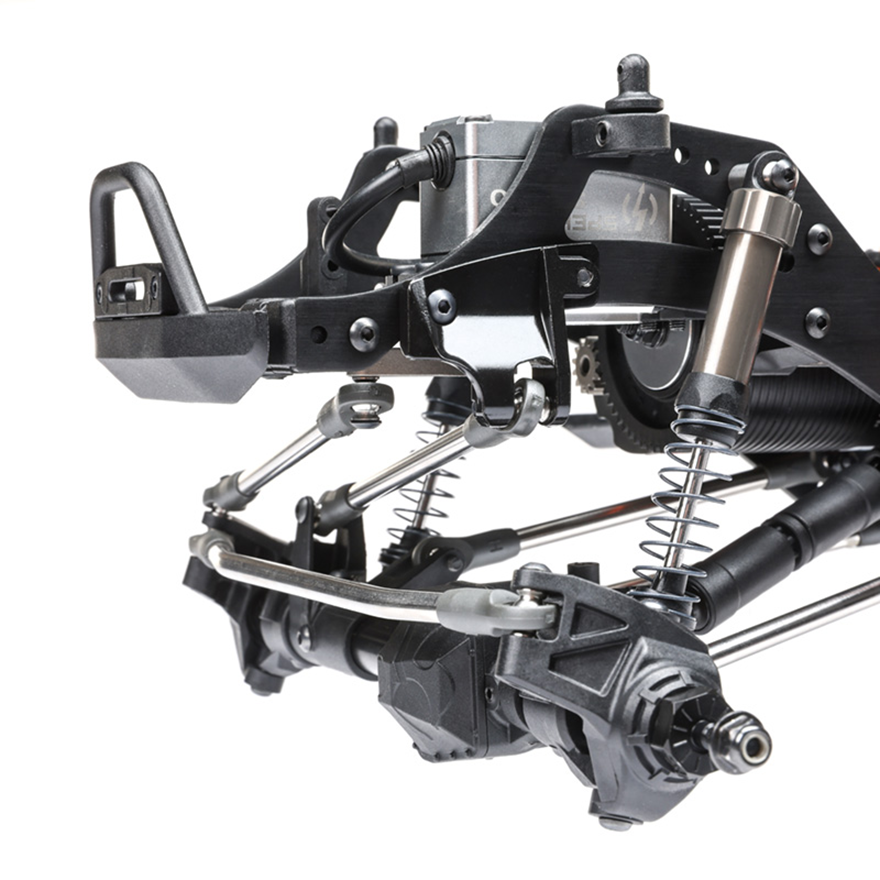

Chassis-Mounted Servo (CMS)

The SCX10 Pro chassis positions the servo as far forward and low as possible. With the CMS setup, the SCX10 Pro uses a 3-link with a panhard bar.

PROS

  • More scale in appearance
  • Scale points awarded in competition
  • Servo is out of harm’s way

CONS

  • Less optimized suspension and steering geometry
  • Higher center of gravity


Ultimately, “on paper,” AMS is a more performance oriented setup and CMS is a more scale oriented setup. But, it’s important to note that servo mounting position is just one of many setup variables. A rig with its steering servo mounted on the axle isn’t guaranteed to outperform a rig with its servo chassis mounted.


SCX10 Pro Servo Tips

Servos have come a long way over the years. Plastic gears and less than 100 oz-in of torque used to be the norm. A lot has changed. Servos keep getting both stronger and more durable. It’s a great time to be in RC, but with more options comes more decision making. The good news is it’s a lot harder to go wrong, but to help you make the perfect decision here are some tips for picking the right servo.

  • While not a requirement, a low profile servo is best in either AMS or CMS, but it’s almost a necessity in the AMS setup. A low profile servo will be less likely to be hit in an AMS setup and it saves weight in a CMS setup, which lowers the center of gravity.
  • A full aluminum case provides better heat dissipation and much better durability. A full case is best but not necessarily required. At the very least select a servo with a partial metal case. You’ll want to make sure the mounting tabs are aluminum.
  • With crawler tires being heavy, conventional wisdom was a servo just had to be strong enough to turn the tires. That, however, is very much just the bare minimum. A servo needs to be strong enough to hold position when sidehills and the whole weight of the vehicle is wanting to turn the front wheels. It’s best to use a servo with at least 400 oz-in of torque. Many top competitors often use servos with over 1,000 oz-in of torque.
  • Speed of the servo shouldn’t be completely discounted. You’ll want to make sure your servo is fast enough rapidly wiggle the tires when needed. This wiggle is often done to purposefully break traction and move the front end either down a ledge or on a sidehill without using the throttle.
  • Even if you don’t plan to take on water crossings, it’s best to get a waterproof servo. Waterproof servos are simply better sealed, which means less dust and dirt inside the servo, which, in turn means a longer lasting servo. Plus, you just never know when water might be an obstacle whether you planned on it or not.
