Pro-Line Racing - Item No. PRO638700
4.4 out of 5 Customer Rating

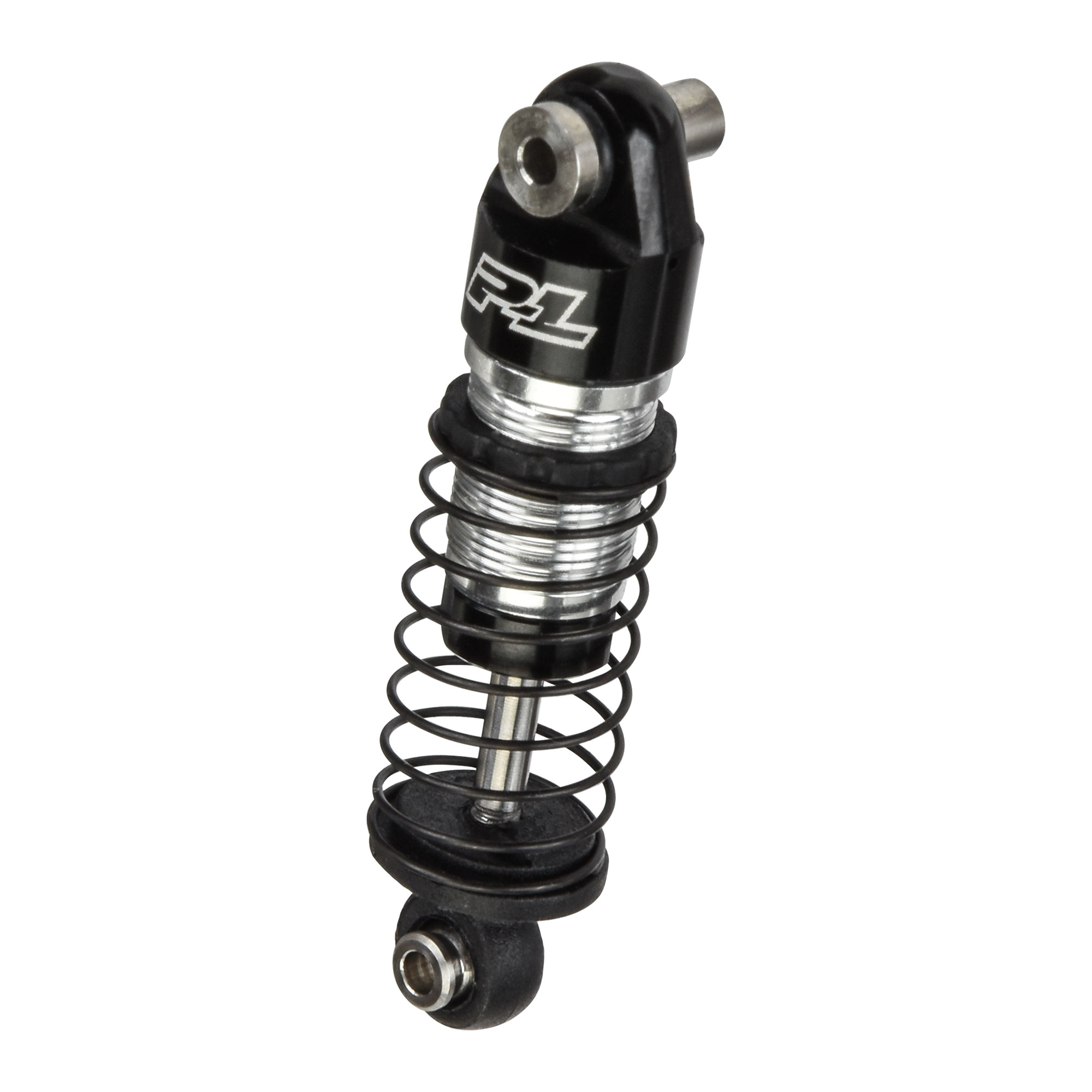

1/24 Big Bore Scaler Shocks (4): SCX24

$39.99
RC Club points earned on this item shown at checkout.
Complete Your Product
  • Ultimate Performance SCX24 Shocks
  • CNC Machined Aluminum Shock Caps, Bodies, and Bottom Caps
  • Leak-free Double O-Ring Seal
  • Polished Steel Shock Shaft
  • Optional Stiff Springs Included, Ideal for Heavier Bodies
  • (4 pcs) Big Bore Scaler Shocks
  • (4 pcs) Optional Stiff Springs
  • (4 pcs) M1.4 x 14mm Upper Screws
  • (4 pcs) M1.4 x 10mm Lower Screws

Overview

This a set of Big Bore Scaler Shocks, designed specifically for the Axial® SCX24™. Take your SCX24™ to the next level of performance in Pro-Line Style! Just like our best-selling 1/10 version, these miniature Big Bore Scaler Shocks feature CNC machined Aluminum Shock Caps, Threaded Bodies, Bottom Caps, and Polished Steel Shock Shafts for added style and durability over the stock shocks. The large 5mm bore shock bodies allow the shocks to function as true performance Big Bore Shocks due to the larger oil volume. A double O-ring seal on the main shaft eliminates leaks and provides a smooth, low-friction shock action.

The Big Bore Shocks come pre-assembled in a set of 4 with all mounting hardware included. All you need to do is unscrew the top cap and add 5-6 drops of silicone shock oil (20wt recommended) to fill the shock body. Replace the cap and compress the shock 3-4 times to fully lubricate the shock shaft. Now you're ready to start your next small-scale adventure!

Two sets of springs are included in the Big Bore Scaler Shock set. The shocks come pre-assembled with a standard spring rate perfect for those stock or close-to-stock rigs. The optional stiffer springs (marked with red paint) are ideal for rigs with heavier ABS/hard bodies, such as the Axial SCX24™ Bronco (AXI00006T1). Don't miss out on the coolest looking and best performing SCX24™ shocks on the Planet, Get your own Pro-Line Big Bore Scaler Shocks today!

PRO638700 | Big Bore Scaler Shocks (4) for SCX24™



Features

  • Ultimate Performance SCX24™ Shocks
  • CNC Machined Aluminum Shock Caps, Bodies, and Bottom Caps
  • True Big Bore Holds More Oil for Better Performance
  • Pre-Assembled, Just Add Oil! (20wt Oil Recommended)
  • Leak-free Double O-Ring Seal
  • Polished Steel Shock Shaft
  • Optional Stiff Springs Included, Ideal for Heavier Bodies

Fits

  • SCX24™

Specs

Extended Length:
34mm (eye-to-eye)
Collapsed Length:
26mm (eye-to-eye)
Stroke:
8mm
Spring Length:
20mm

PRODUCT SPECS

Material
Aluminium
Scale
1/24
Vehicle Type
Rock Crawler
Part Type
Shocks & Shock Parts
Product Length
1.32" (34 mm)
Application
SCX24
