Posted: 9/19/11
I wanted to create more of a two-seater race style buggy. Something with the looks along the line of an Ultra 4 racer or KOH racer.

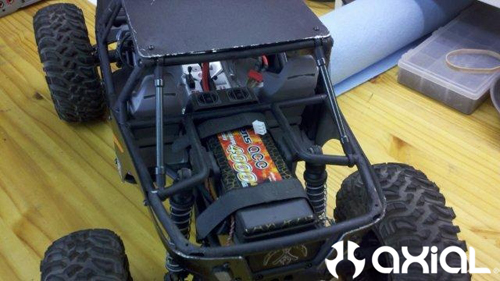

First I chopped off the back of the cage by cutting at the base of the C and D pillars and then at the back of the center support between the B pillar of the roof cage.

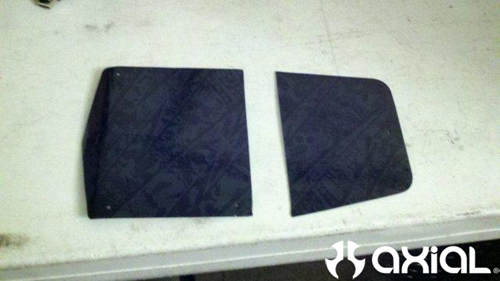

Trim the Lexan roof to fit the shortened roof cage.
Sand the rough cut edges of the cage to a smooth finish.
Using 7x60mm grey posts (AXA1429), M3x16mm set screws (AXA186), rod ends (AX80005), and flanged balls (AXA1331), I created the new rear down tube supports.
I trimmed the center support of the roof to make room for the ball flange. I bored out the rod end to slip over the rear shock brace tube. I trimmed up a piece of flat Lexan to create a cover for the battery area.

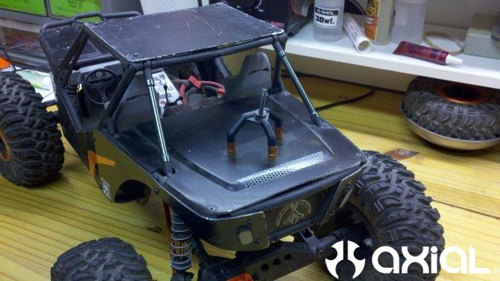

Next is to create the spare tire carrier. I started by using the spare tire mount from the Axial SCX10 Trail Honcho. It already has a really good angle to carry the tire.

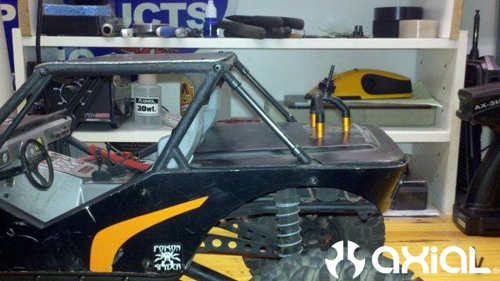

I used a couple spacers 4x6mm (AXA1453) and 6x6mm (AXA1355) to lift the carrier up to fit the Ripsaw tire. I also put cone washers (AXA1104) underneath the Lexan to add strength. The last thing I had to do was trim the tire mount post of the carrier and add a hex hub (AXA30429) to keep the tire in place.
So there ya have it!!!! One Axial Wraith with an Ultra 4 style setup that has an aggressive unique look. With a little patience and a open Saturday afternoon you create the same look.
