In our mission to show you how the Axial SCX10 and SCX10 II are a perfect fit for SORRCA Class 1 events, we’ve organized the rules and broke them down into six total focus groups. We’ve reached the final focus and that is the wheels, tires and widths to fit your vehicle in. This topic requires some thought and product purchase choices will require work on your part to make sure your rig complies. Let’s dive in.
FOCUS 6: TREADS
SORRCA Rule • 106mm / 4.19" Max tire size including spares.

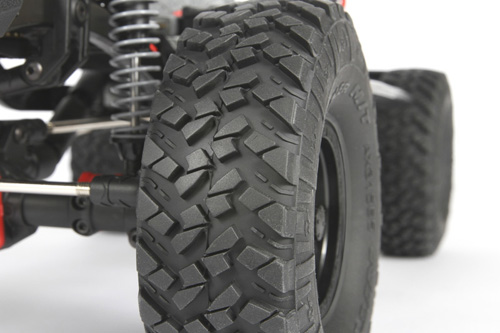

Looks like the Axial Perfect Fit has hit a snag. Unfortunately, the treads within the Axial tire line-up are on the larger side of the SORRCA rule and therefore you’ll need to search for tires that fit this rule and your traction needs. If you are trying to keep that factory look, consider using a licensed wheel from the Axial selection HERE.
SORRCA Rule • Wheels must be aligned within the body wheel wells (center of wheels to center of wheel wells +/- 1/2 inch total combined)
SORRCA Rule • The tread of the tires cannot extend outside of the wheel wells more than 1/2 of the tread width, flairs can be added to reach minimum spec.

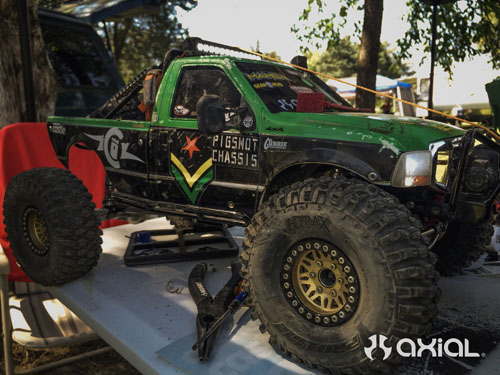

When choosing your wheel and tire combination, you’ll want to make certain that the wheel off-set is correct, consider hex hub widths, and tire overhang on the rim so it does not exceed the measurements provided by SORRCA. The vehicle above has wheels that are obviously outside of the body width; this rig would not fit within SORRCA's rules.
SORRCA Rule • Tires can never extend beyond the body’s bumpers or the rear of any truck bed. (Any stingers,fairleads, shackles, bolts, etc. are not considered part of a bumper when determining this.)
As Axial SCX10 and SCX10 II’s arrive from the factory, the wheels and tires are located behind the bumpers. When lengthening links or altering bumper positions, you’ll want to make sure the wheels will still fit behind the bumper. If you are making modifications as such, make sure you fit within some of the previous rules mentioned in our series like sectioning and bobbing.
SORRCA Rule • Gates will be a minimum of 11" wide (so mind your width).
Gate width plays a key role in determining the width of your trail rig once you start customizing. The stock SCX10 width is 8.8” and the SCX10 is 8.9” which will leave some space to clear gates as long as your wheel and tire choice combination result in a factory width in order to fit under the body. If you choose a combination that is wider, you’re putting the squeeze on your rig through the gates. A bigger concern is the angles in which you need to proceed through some gates if a minimum 11” gate is used. Things can get tight.
GET SORRCA READY
That wraps up the series on the Axial SCX10/ SCX10 II Perfect Fit for SORRCA blog focus. SORRCA has done an excellent job in providing guidelines for everyone to follow so the rigs stay scale and the competition stays close. Our descriptions of how scale Axial trucks fit into these rule sets has been interpereted and presented to the best of our knowledge. Both Axial trail truck platforms continue to be the perfect choice for drivers who want to drive scale, customize with ease and tackle the trails with commanding performance.
