SCX10™ Wheelbase Compatibility Guide

scx10_wb1

Far to often, questions about the differences between each of the SCX10 vehicles arise, especially surrounding wheelbase and body options. Questions such as “is this body compatible with that chassis?” or “which link kit should I order?” and so on. The beauty behind the SCX10 is its ability to change wheelbase lengths with relative ease, which also makes it possible to choose from a larger array of bodies thanks to this adjustability.

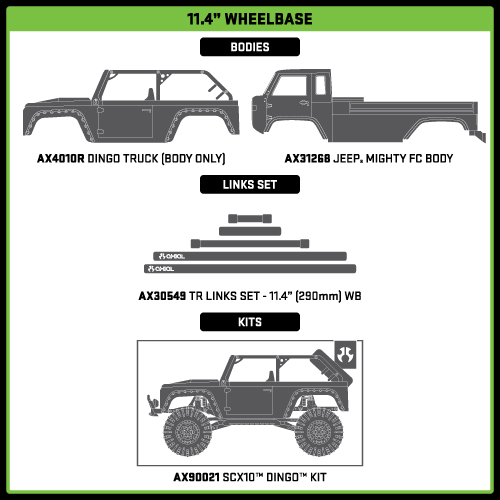

scx10_wb2All great news but what does it mean? Simple, say for example you purchased a Ram Power Wagon RTR (AX90037) but you really want to paint and build up a Jeep Mighty FC Body (AX31268), install the 11.4” TR Links Set (AX30549) to shorten the wheelbase and your ready to go. Or going the opposite direction, you’ve got a Dingo (AX90021) and want to build up a Jeep Wrangler Unlimited Full body kit (AX04035), just install the 12.3” TR Links Set (AX30550). At the end of the day, the link kits are your gateway to multiple body options for the perfect look with wheels tucked attractively into the wheel wells.

scx10_wb3

From a tune-ability standpoint changing the length of your vehicles wheelbase will change it’s driving characteristics. For example, the shorter 11.4” wheelbase will increase slow speed maneuverability while sacrificing some high-speed stability, great for tight technical terrain. While a longer 12.3” wheelbase will improve stability and decrease maneuverability, great for hill climbing. Tech Terms: Wheelbase - The distance between the center points of the front and rear axles on a vehicle. Maneuverability - Able to be maneuvered easily while in motion. Stability - Resistance to change, especially sudden change.

scx10_wb4




All together for your reference:

guide_wheelbase
