Posted: 6/2/15

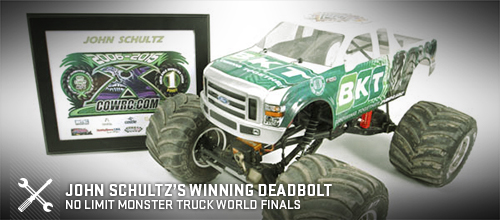

Fresh off the tarmac from the 2015 No Limit RC Monster Truck World Finals held at Dennis Anderson’s Diggers Dungeon in Poplar North Carolina, John Schultz, Axial Ambassador, dropped off his custom built Deadbolt Monster Truck conversion at Axial HQ for a closer look. It’s important to note, Solid Axle was the biggest class in attendance, 70 trucks raced and a total of 80 trucks present, many of which featured Axial’s AR60 axles.

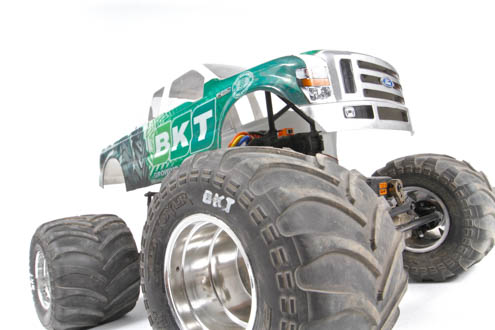

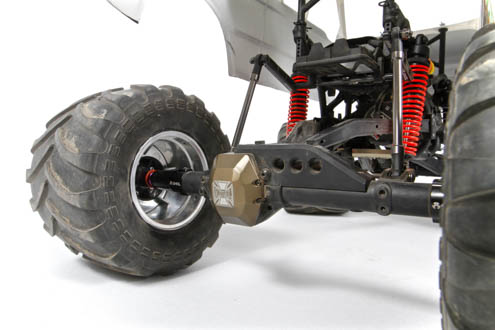

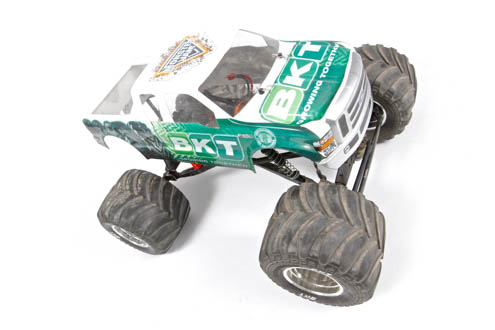

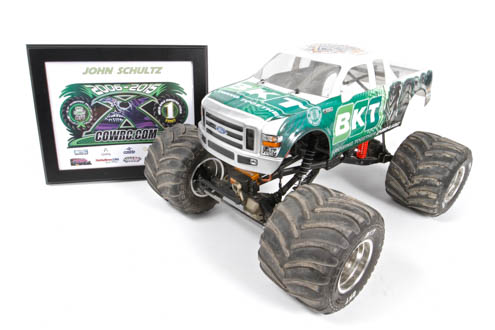

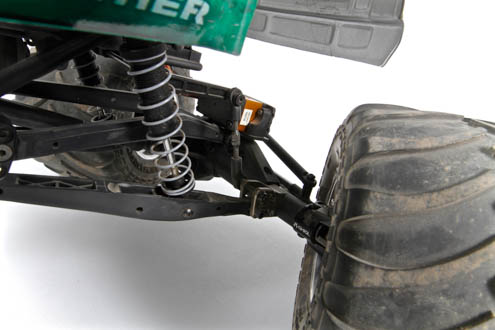

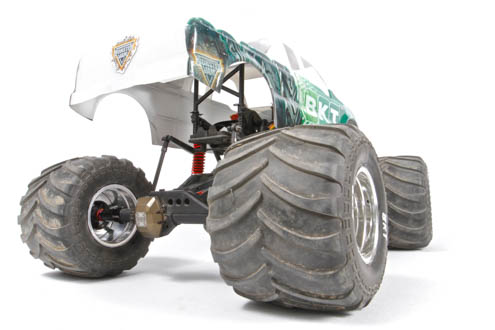

Upon first peek it might be hard to spot the Deadbolt backbone, but upon a second glance it'll be more obvious, as will the dusting of Wraith and Yeti parts. We’ll be featuring a more in-depth build report on the truck shortly. In the meantime, here’s a quick parts list and detailed photos of the truck. Lets not forget photos, CLICK HERE for more photos.
Axial Parts List:
AX31109 – Yeti™ Rear 4 Link Set, F&R
AX30782 – Wraith Rear Sway Bar Set (Soft, Medium, Firm)
AX30781 – Wraith Front Sway Bar Set (Soft, Medium, Firm)
AX30708 – AX10 Locked Transmission - Complete Metal Gear Set - Steel (3pcs)
AX30829 – AR60 OCP Machined Low-Profile Differential Cover (Hard Anodized)
AX30830 - AR60 OCP Machined Link Mounts (Hard Anodized) (2pcs)
AX30836 - Aluminum Servo Horn 25T (Hard Anodized)
AX30780 - AR60 OCP Universal Axle Set F&R
AX30789 - AR60 OCP Aluminum Straight Axle Hub Carrier (2pcs)
AX30395 - Heavy Duty Bevel Gear Set - 38T/13T (Rear Axle)
AX30401 - Heavy Duty Bevel Gear Set - 36T/14T (Front Axle, Overdrive)
AX30760 - XR10 Aluminum Steering Knuckle (Black) (2pcs)
AX30762 - XR10 Aluminum C-Hub Carrier (Black) (2pcs)
Other Parts:
Tires - 10114-02 - Pro-Line Racing Destroyer 2.6” Solid Axle Monster Tire F&R
Wheels - Clod Buster Rims and Adapters F&R
HPI - 88055 - Wheelie King Axle Wideners F&R
HPI – 6589 - Wheelie King Red/Soft Springs
HPI – 87600 - Wheelie King Differentials
Body - 3252-00 – Pro-Line Racing Ford F-250 Body
Graphics/Paint - BKT Ride Truck Graphics
ESC/Motor - 3087 - Novak Electronics – Crusher ESC w/4PHD 4X4 SCT BL Motor
Battery – DTXC1964 - Duratrax – 2s 5000mAh 35c LiPo
Servo – Savox – SV1271SG
