Posted: 12/15/09
Here is a quick How-To, on installing the Axial Light Buckets on a lexan body.Part needed:
AX80045 - Axial Light Bucket Set (Black)
AX80049 - Axial LED Lens Set - Yellow/Clear (4pcs)
AX24257 - Simple LED Controller w/LED lights (4 white and 2 red)

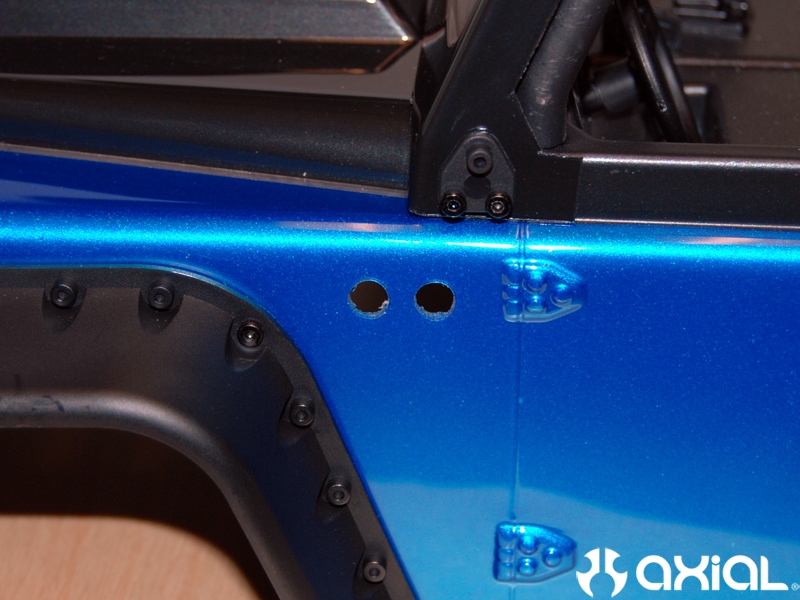

Once you have a good idea of where you want to install the light buckets. Take a body reamer and make two starting holes.
Make sure you don't go over, the light buckets do have a small lip on them so you have some space. Just take your time and slowly open up the holes to size.

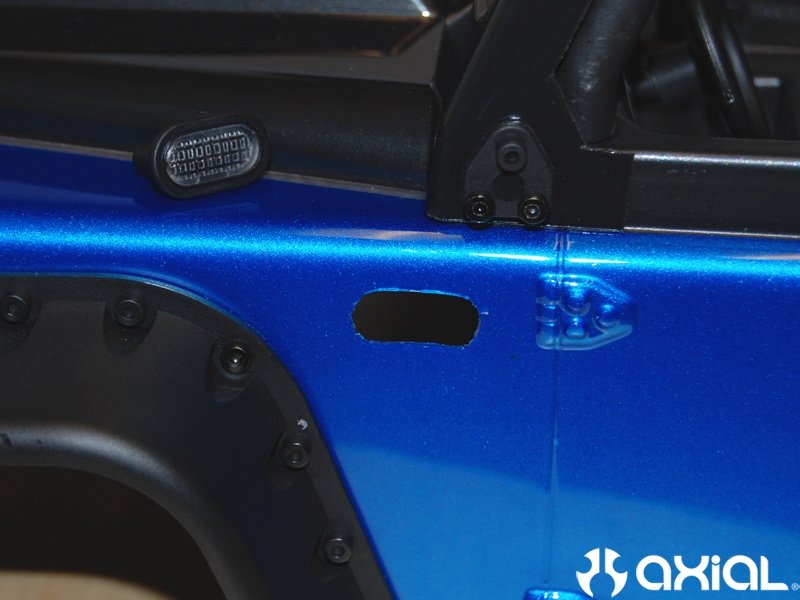

Next I took my Exacto blade and removed the remaining material.

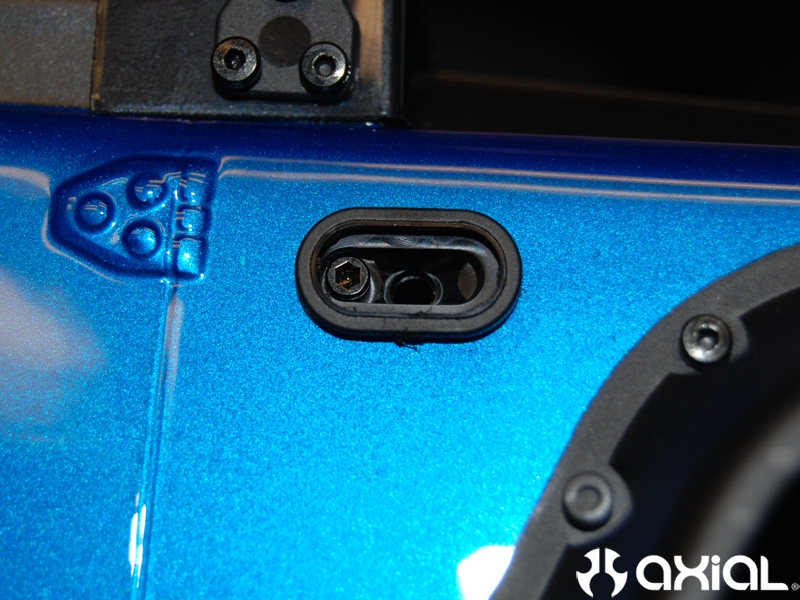

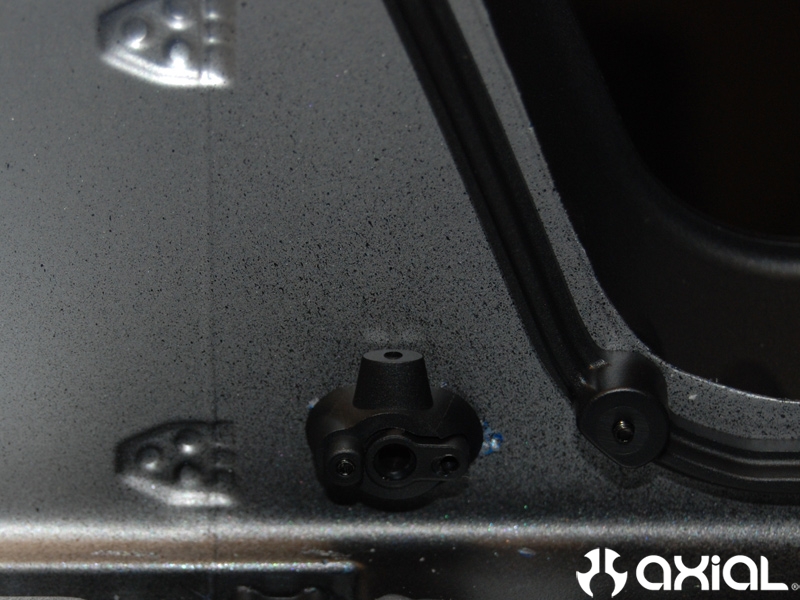

The Axial Light Buckets are very easy to install and give a really clean finished look.

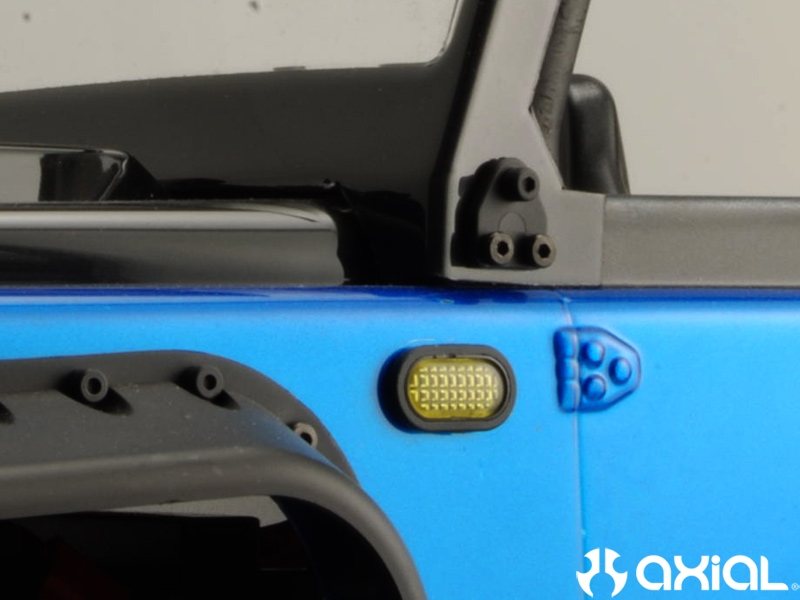

Then lastly, pop on the lens. I used yellow for the side marker.
