Posted: 3/2/18

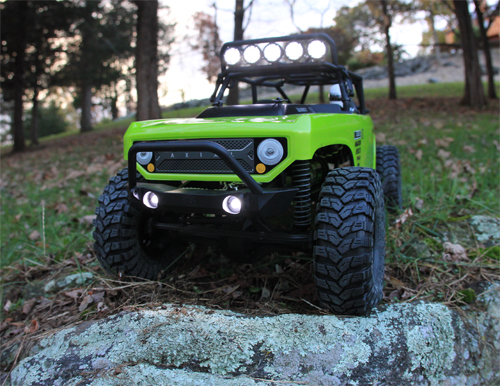

Lighting in a scale truck is pretty much mandatory nowadays. The new Jeep Rubicon Unlimited CRC and Honcho both feature factory equipped lights and the new AE5-L speed control to power the lights. However, if you don't have one of those specific models, there are still plenty of optional LED lights available from the Axial line-up to customize your specific trail rig. Like many LED light sets on the market, each set has their own designated use and may need specific power setups in order for them to work properly. In this Axial LED overview, we’re going to take a look at the individual light sets and appropriate power sources and controllers so you know what is compatible when going to equip your rig with lights.
SET OPTIONS

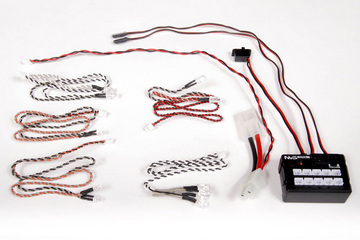

NVS - Night Visions System
Part- AX24251
The NVS kit gives you everything you need to give your rig a full custom lit look. Headlights, tail lights, marker lights and most importantly a power and control module. This system comes with the power module that will provide the correct power for the included LED light strings. Power to the module is provided by an in-line adapter that goes between the battery and ESC.
POWERED BY: Included in-line adapter (Note: Plugs may need to be exchanged depending on existing speed control and battery plug type)

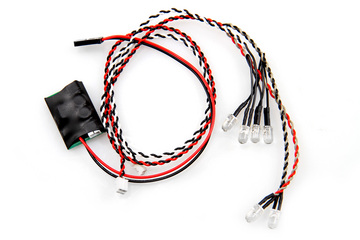

Simple LED Controller w/LED lights (4 white and 2 red)
Part- AX24257
This Simple LED Controller includes 4 bright white LED's, AX24258, and 2 bright red LED's, AX24253. Other light strands compatible with the controller are: AX24252, AX24253, AX24254, AX24255, AX24256, and AX24258. Controller can power two 2 or 4 LED Strings only.
POWERED BY: Open Receiver Port (CH 3, Aux, etc.)
NOTE: NOT COMPATIBLE WITH AE-5L ESC
STRING OPTIONS

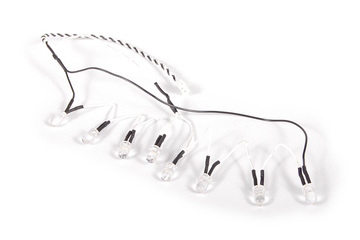

8 LED Light String (White LED)
Part- AX31098
This light string works pefectly with the AX31152 Axial LED light bar or other custom applications. This specific light string requires the AX31097 3 port high output LED controller to power it.
NOTE: NOT COMPATIBLE WITH AE-5L ESC

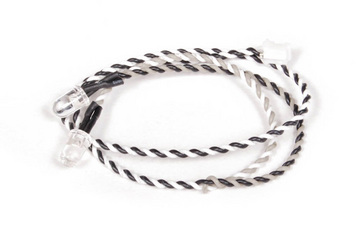

Double LED Light String (White LEDs)
Part- AX24252
The perfect LED set for headlights. This light string can only be powered by the Axial NVS - Night Visions System - AX24251 and/or Simple LED Controller- AX24257.
NOTE: NOT COMPATIBLE WITH AE-5L ESC

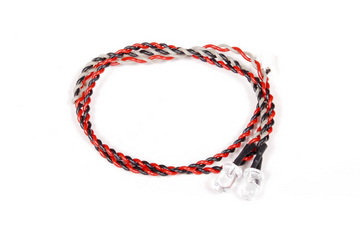

Double LED Light String (Red LED)
Part- AX24253
Often used for tail lights, the Double Red LED String must be used with Axial NVS - Night Visions System - AX24251 and/or Simple LED Controller- AX24257 installed for vehicles that do not include light strings.
NOTE: NOT COMPATIBLE WITH AE-5L ESC

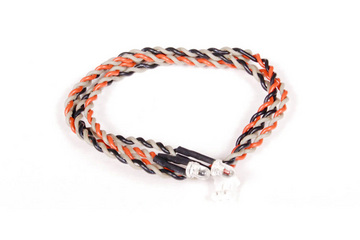

Double LED Light String (Orange LED)
Part- AX24254
Double Orange LED light strings for turn signals; these are powered either by
the Axial NVS - Night Visions System - AX24251 and/or the Simple LED Controller- AX24257.
NOTE: NOT COMPATIBLE WITH AE-5L ESC

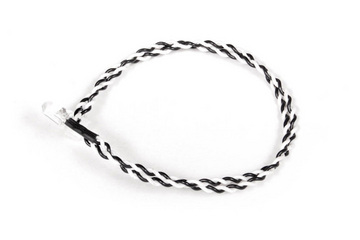

Single LED Light String (White LED)
Part- AX24255
Additional/replacement LED light string. Must have Axial NVS - Night Visions System - AX24251 and/or Simple LED Controller- AX24257 installed for vehicles that do not include these light strings.
NOTE: NOT COMPATIBLE WITH AE-5L ESC

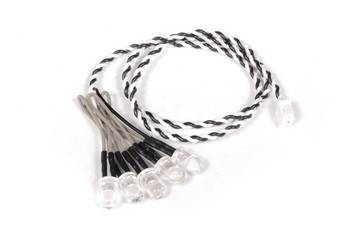

5 LED Light String (White LED)
Part- AX24256
5 LED light string for auxiliary lights (White LED). Must have Axial NVS - Night Visions System - AX24251 and/or Simple LED Controller- AX24257 installed for vehicles that do not include these light strings.
NOTE: NOT COMPATIBLE WITH AE-5L ESC

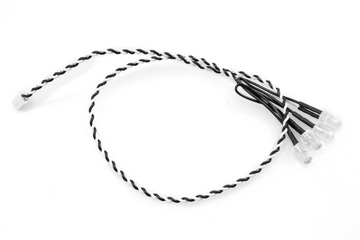

4 LED Light String (White LED)
Part- AX24258
Must have Axial NVS - Night Visions System - AX24251 and/or Simple LED Controller- AX24257 installed for vehicles that do not include these light strings.
NOTE: NOT COMPATIBLE WITH AE-5L ESC
POWER CONTROL

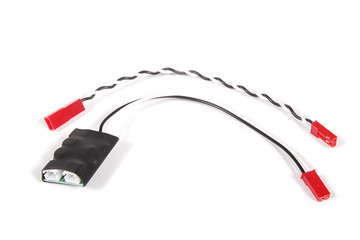

3 Port High Output LED Controller
Part- AX31097
Compatible with Axial’s 8 LED string (AX31098) in the HO port. A 2 or 4 LED string can run off of the two additonal ports. This light controller fills the gap between the basic simple LED kit (AX24257) and the full blown Night Vision System (AX24251). It has the ability to power 3 separate LED strings and Includes harness extension for removing the body.
NOTE: NOT COMPATIBLE WITH AE-5L ESC or 5-LED String AX24256
ACCESSORY SETS

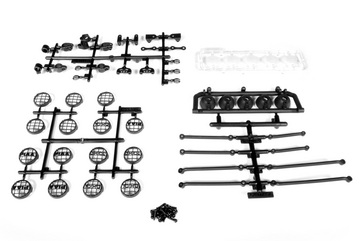

Part- AX30709
Axial’s new Universal 5 Bucket Light Bar Set comes with a complete set of screws and plastic parts designed for a variety of Axial vehicles as well as a universal system for additional mounting applications. The light bar’s tubular design gives your vehicle cool scale looks and each light bucket can be outfitted with an LED light to help guide the way on those late night runs (LED lights sold separately).The set also includes three different mesh grilles for your lights: plain, Axial and officially licensed PIAA grill covers. PIAA is a registered trademark of PIAA Corporation.
Options:
AX24251 – NVS Night Vision System with LED lights
AX24257 – Simple LED controller with LED lights
AX24256 – Axial 5 LED light string

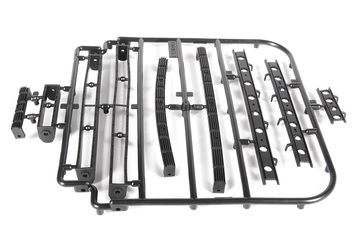

Axial LED light bar, officially licensed by Rigid Industries!
Part- AX31152
This molded plastic housing includes three different length light bars, hardware, universal mounting brackets, clear LED lenses and Instructions. For use with optional AX31098 8 LED Light String (White LED) and AX31097 3 Port High Output LED Controller.

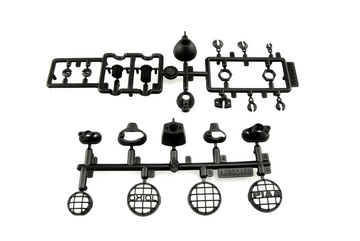

Light Bucket Set
Part- AX80045
Get custom and add lights where you want to. This set includes seven different styles of light buckets with plastic lenses in clear and yellow to hold 5mm and 3mm LED lights.
POWER SOURCES
Now that we have some of your options out of the way it's time to talk about where to tap into the power on your rig in order to light up those LED's
Receiver Power- Units like the 3 Port High Output LED Controller can be powered from the receiver. A extension plug is provided to plug into any open port on the receiver. Be aware that the receivers voltage may be regualted and may not power the controller correctly. As a result the lights may appear dim. In this case you may need to direct wire the controller.
Direct Power- The NVS includes an adapter to receive power directly from your rigs main battery. This ensures the unit receives the voltage necessary to light up the LED's. Direct power connections is another way of hooking up other controllers or LED systems to power the LED's. To do this, an extension wire needs to be soldered to the positive and negative battery wire solder posts, or wires, or connectors on the ESC. Now, when you plug in your battery, your LED lights will instantly illuminate unless you decide to solder in an in-line switch as well.
Even with all of the information above, your personal alterations to your electronics may have an effect on your LED lighting. Other factors can include battery voltage. When making changes to your vehicle beyond what is described, be aware that additional testing may need to take place in order to make your system work properly.
