Posted: 10/11/19

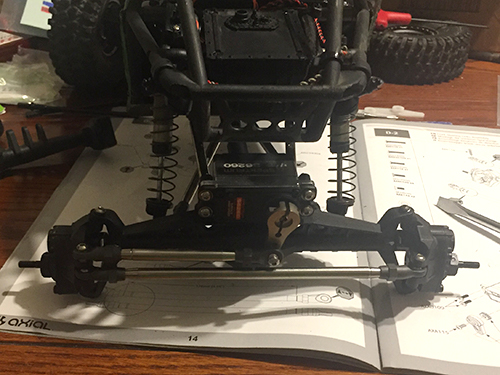

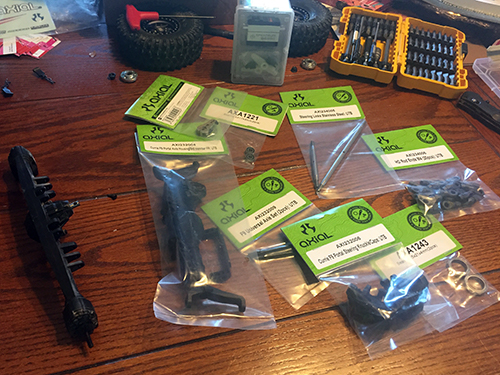

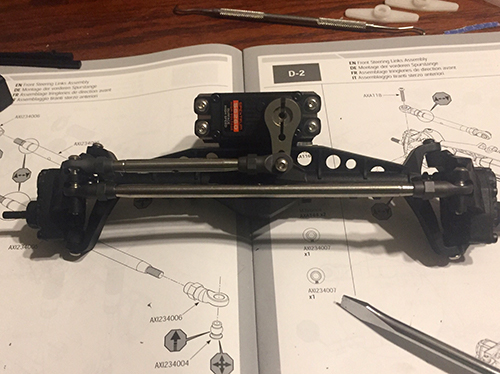

Convert your Capra™ to four wheel steer using the parts below. Follow the instruction manual for the front axle steering setup: CAPRA KIT INSTRUCTION MANUAL

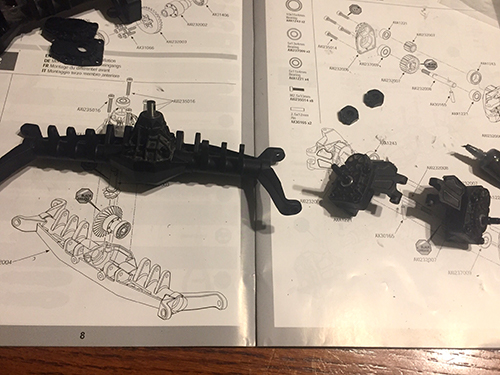

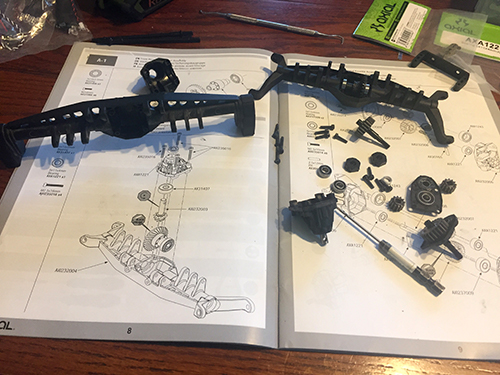

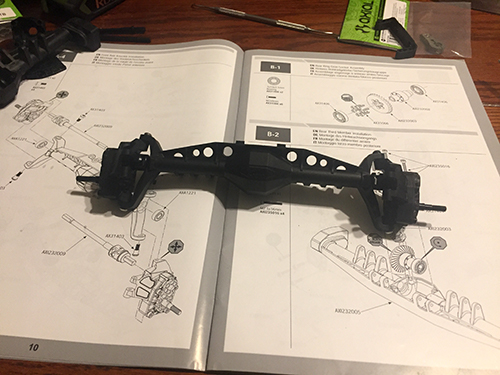

Retain the use of the portal gears, outdrives, bearings, ring and pinion, and carrier bearings that came with the Capra. Use your choice of steering servo and servo horn.
AXI232006 Currie F9 Portal Steering Knuckle/Caps: UTB
AXI232009 F9 Universal Axle Set (2pcs): UTB
AXI232004 Currie F9 Portal Axle Housing/3rd member FR: UTB
AXI234004 Suspension Pivot Ball, Stainless Steel 7.5mm (10pc)
AXI234005 Steering Links, Stainless Steel: Capra 1.9 UTB
AXI234006 HD Rod Ends M4 (20pcs): UTB
AXA1221 Bearing 5x11x4mm (2pcs)
AXA1230 Bearing 10x15x4mm (2pcs)
AX30834 Aluminum Servo Horn 23T (Hard Anodized)
AX31403 M3x4x10mm Hex Socket Button Head Shoulder Screw (Black) (6pcs)
AXA144 M3x8mm Hex Socket Flat Head (Black) (10pcs)
AXA0109 M3x10mm Oversized Flat Hex Socket (Black) (10pcs)
AXI234007 Steering Servo Arm & Inserts (23T/25T): UTB
AXA116 M3x12mm Hex Socket Button Head - Black (10pcs)
AXI235109 M3 x 14mm, Button Head Screw (10)
AXA120 M3x25mm Hex Socket Button Head (Black) (10pcs)
SPMS605 9KG Servo, WP, Metal Center Case, 23T
SPMA3051 Standard Servo Extension 6"
