Posted: 5/29/12

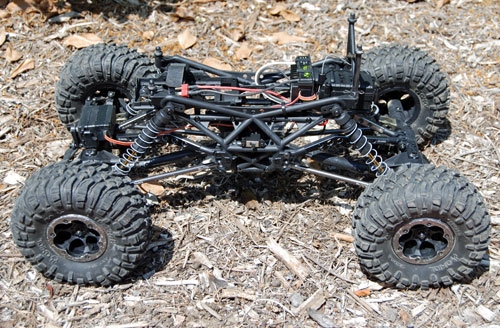

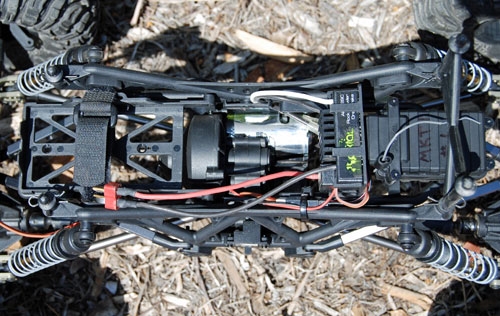

Now that Axial's new Ridgecrest is readily available I wanted to show one of the Ridgecrest projects I have been working on. For this project I just wanted to build a do it all trail runner/crawler/basher. The Ridgecrest is the perfect platform for this type of build in my opinion, because of the stout AR60 axles and the well tuned suspension geometry. The purpose of this build is to have a rig that can handle a lot of various situations from sandy hills, to rocks and roots, a little water, and possibly some urban bashing. This project will also probably be a loaner vehicle on occasion as well, so I want it to work decent in all situations. Here's a rundown of what I changed, and why.A couple shots with the body removed. I swapped the electronics and battery trays around so the battery now sits in front for better weight distribution.

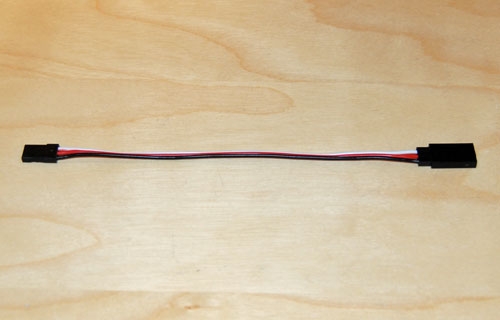

Swapping the two trays around was easy, the only thing required was a servo extension wire. The steering servo wire lead on this rig was a bit too short for me to reach the receiver after swapping the two trays around. Servo extensions can be found at most hobby shops and online retailers for less than $5, so it is a cheap and easy solution.

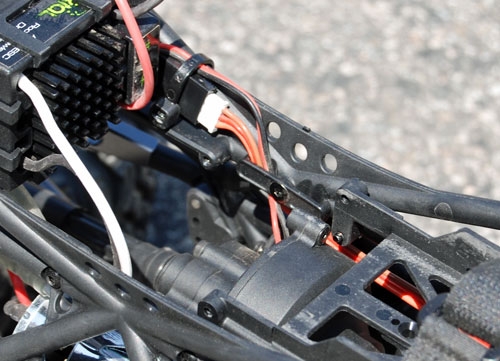

Here you can see the junction where the servo wire and the servo extension meet. I used the stock wire guide to keep the wires out of harm's way. Also notice I moved the on/off switch to the opposite side of the chassis, just to keep wires cleanly tucked away.

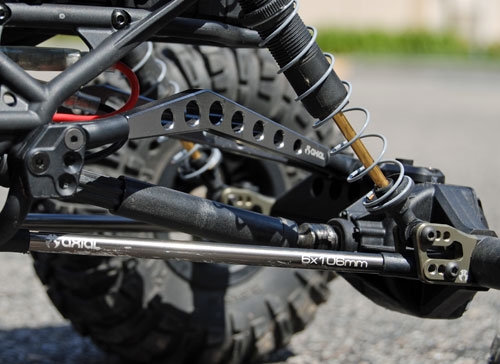

I stretched the wheelbase on this Ridgecrest to help on big rock obstacles, and hill climbs. A longer wheelbase usually helps a rig's capabilities in these situations. So, I installed our 106mm grey links, part number AX30516, to replace the old stock plastic lower links. Then, I used our grey machined high clearance links, part number AX30469, to replace the stock upper links. In order to stretch the wheelbase as much as possible I used our long curved XR10 rod ends on all the suspension links, part number AX80057. You will need 4 of the rod end parts trees total to complete the conversion, as well as M3 threaded studs to secure the rod ends to the links, part number AXA0187. You will need two packages of the threaded studs to complete the conversion. My wheelbase now sits at 13 1/2".

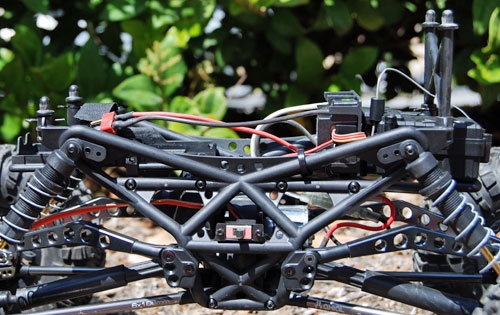

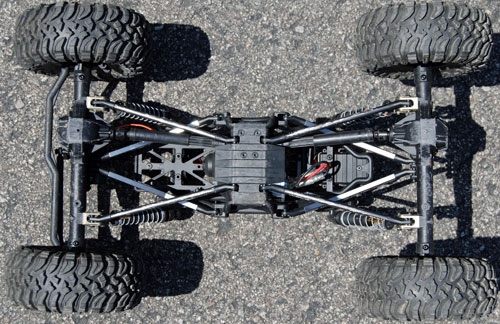

A shot of the link set-up.

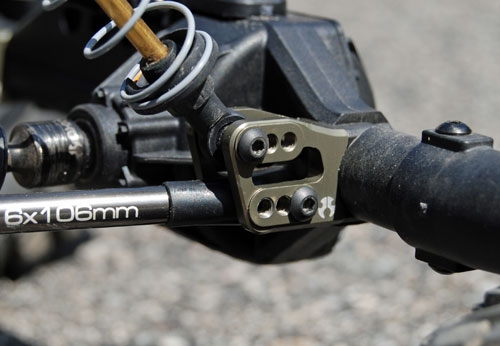

Here you can see I also installed our new AR60 machined link mounts, part number AX30830, on the axles as well. These link mounts are cool because they have multiple mounting points, which will help you fine tune wheelbase, ride height and shock angles as needed.

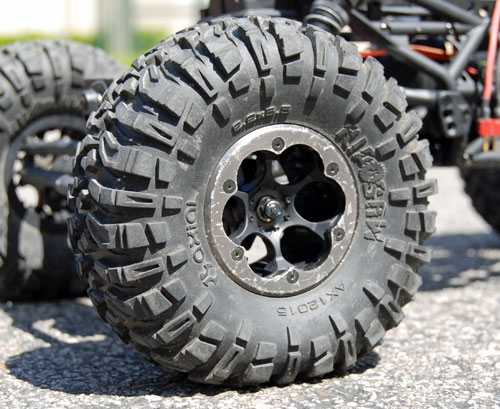

Another modification that I made was the jump to XR10 beadlock wheels, part number AX08061, and R35 Ripsaw tires, part number AX12015. This mod is one of the best you can make, the difference in traction between the stock RTR Ripsaw tires and the better R35 compound tires is night and day.

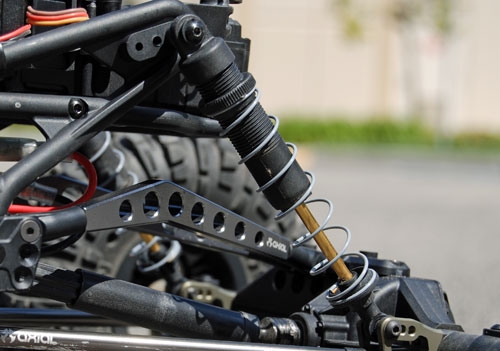

Last thing I changed was the springs on the shocks. The stock springs were a bit too stiff for my liking, so I swapped them out for our purple comp springs, part number AX30224.

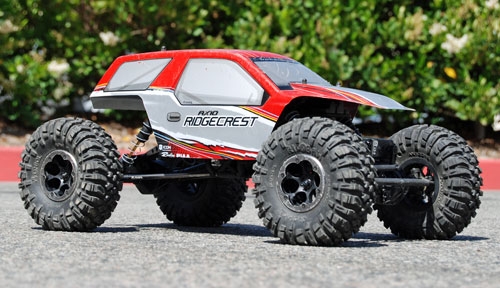

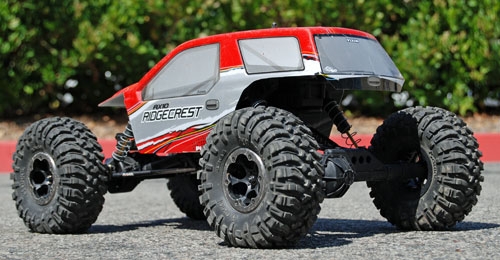

A few shots with the newly cut body.
So far these few mods have really transformed this vehicle into a super capable basher/trail runner, that is extremely fun to drive. Keep an eye out for my next few Ridgecrest installments covering how to convert your Ridgecrest into a capable comp crawler.
