Posted: 1/12/18
Found in: SCX10 II CRC Edition 2017 Jeep Wrangler Unlimited
Stock Gearing
LCX: 32P 13T Pinion / 56T Spur Gear
Gearing Chart
32 Pitch (Stock Gearing AX30392 or AX30395)
_
Spur Gear
Pinion
56
60
64
68
11
38.69
41.45
44.22
46.98
12
35.47
38.00
40.53
43.07
13
32.74
35.08
37.42
39.75
14
30.40
32.57
34.74
36.91
15
28.37
30.40
32.43
34.45
16
26.60
28.50
30.40
32.30
17
25.04
26.82
28.61
30.40
32 Pitch (Overdrive Gearing AX30401)
_
Spur Gear
Pinion
56
60
64
68
11
34.04
36.47
38.90
41.33
12
31.20
33.43
35.66
37.89
13
28.80
30.86
32.91
34.97
14
26.74
28.65
30.56
32.47
15
24.96
26.74
28.53
30.31
16
23.40
25.07
26.74
28.41
17
22.02
23.60
25.17
26.74
32 Pitch (Underdrive Gearing AX30402)
_
Spur Gear
Pinion
56
60
64
68
11
43.78
46.91
50.04
53.16
12
40.13
43.00
45.87
48.73
13
37.05
39.69
42.34
44.98
14
34.40
36.86
39.31
41.77
15
32.11
34.40
36.69
38.99
16
30.10
32.25
34.40
36.55
17
28.33
30.35
32.38
34.40

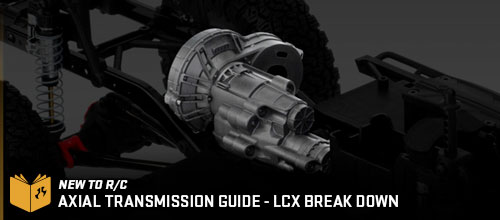

AXIAL LCX TRANSMISSION PARTS LIST
AXA0023 M2.6x8mm Cap Head Screw
AXA013 M2x6mm Cap Head Screw
AXA1045 M4 Nylon Locking Flanged Nuts
AXA1218 Bearing 5x10x4mm
AXA1225 Bearing 8x16x5mm
AX30162 Straight Pin
AX30394 20T Drive Gear
AX30413 Slipper Spring
AX30435 Steel Outdrive Shaft Set
AX30190 Shaft
AXA146 M3x12mm Socket Head Screw
AX31026 Slipper Plate
AX31027 Spur Gear 32P 56T
AX31068 Slipper Pad
AX31531 LCX Transmission Case
AX31539 LCX Top Shaft (Coming Soon)
AX31585 Gear Set (48P 28T/ 48P 52T)
