Posted: 1/4/18

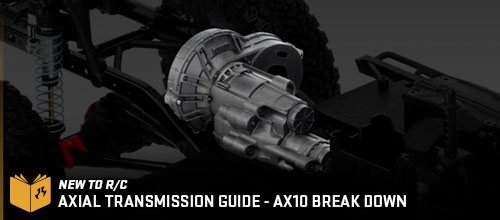

A quick reference parts list for the Axial AX10™ Transmission.
Found in: AX10 / SCX10 / SCX10 II RTR / WRAITH / SMT10 3 GEAR TRANS
Stock Gearing
SCX10: 32P 13T Pinion / 56T Spur Gear
SCX10 II RTR: 32P 13T Pinion / 56T Spur Gear
Wraith: 32P 12T Pinion / 56T Spur Gear
SMT10: 32P 16T Pinion / 56T Spur Gear
Gearing Chart
32 Pitch (Stock Gearing AX30392 or AX30395)
_
Spur Gear
Pinion
56
60
64
68
11
38.69
41.45
44.22
46.98
12
35.47
38.00
40.53
43.07
13
32.74
35.08
37.42
39.75
14
30.40
32.57
34.74
36.91
15
28.37
30.40
32.43
34.45
16
26.60
28.50
30.40
32.30
17
25.04
26.82
28.61
30.40
32 Pitch (Overdrive Gearing AX30401)
_
Spur Gear
Pinion
56
60
64
68
11
34.04
36.47
38.90
41.33
12
31.20
33.43
35.66
37.89
13
28.80
30.86
32.91
34.97
14
26.74
28.65
30.56
32.47
15
24.96
26.74
28.53
30.31
16
23.40
25.07
26.74
28.41
17
22.02
23.60
25.17
26.74
32 Pitch (Underdrive Gearing AX30402)
_
Spur Gear
Pinion
56
60
64
68
11
43.78
46.91
50.04
53.16
12
40.13
43.00
45.87
48.73
13
37.05
39.69
42.34
44.98
14
34.40
36.86
39.31
41.77
15
32.11
34.40
36.69
38.99
16
30.10
32.25
34.40
36.55
17
28.33
30.35
32.38
34.40
AXIAL AX10™ TRANSMISSION PARTS LIST
AX30487 Complete AX10 Transmission
AXA013 M2x6mm SH Screws
AXA089 M3x25mm SC Screws
AXA1045 M4 Nylon Lock Nuts
AXA1053 M3 Nylon Locking Hex Nuts
AXA1218 Bearing, 5x10x4mm (2 pkgs)
AXA1225 Bearing, 8x16x5mm
AX30162 Cross Pin
AX30190 Shaft 5x18mm
AX30394 20T Drive Gear
AX30413 Slipper Spring
AX30435 Steel Outdrive Set
AX30491 AX10 RTR Motor Plate
AX31026 Slipper Plate Washer
AX31027 Spur Gear 32P 56T
AX31068 Slipper Pad
AX31149 Slipper Drive Gear Shaft
AX80009 Transmission Set
AX80010 Gear Set
AX80078 Transmission Spur Gear Cover
