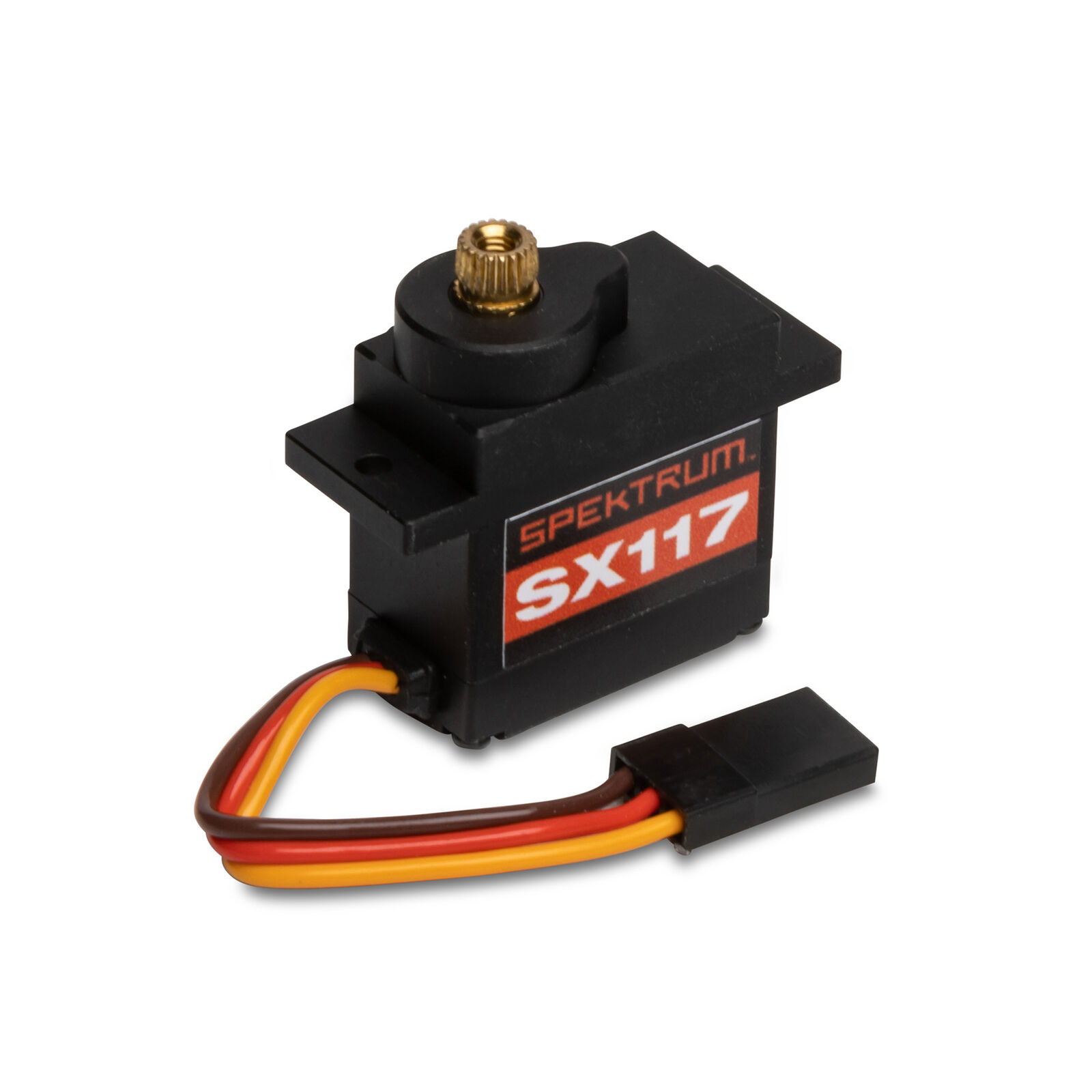

SX117 Micro Metal Gear / Case Servo
Spektrum - Item No. SPMSSX117
5 out of 5 Customer Rating

SX117 Micro Metal Gear / Case Servo

$74.99
Earn Full Throttle Rewards With Every Purchase. Learn More.
  • Mini coreless servo
  • Metal Gears
  • Waterproof
  • All metal case
  • High-Voltage (8.4V) capable for fast speeds and high torque
  • Max Torque: 55 oz-in @8.4V
  • Max Servo Speed: 0.05 @ 8.4V
  • 20T Spline Count
  • Includes mounting hardware and servo arms
  • 2-1/4-inch lead wire length
  • Perfect upgrade servo for 1/18, mini vehicles, and Axial SCX10 dig/shift vehicles

Product Fitments

1/10 SCX10 III Base Camp 4WD Rock Crawler Builder's Kit
AXI03011
1/10 SCX10 III Base Camp 4WD Rock Crawler Builder's Kit
Replacement Parts
Optional Parts
1/8 AXP8 Gilamon 2.2 4X4 RTR Brushed Trail Buggy
AXI-1207
1/8 AXP8 Gilamon 2.2 4X4 RTR Brushed Trail Buggy
Replacement Parts
Optional Parts
DXC+ 12-Channel DSMR+ Transmitter Only
SPMR6130
DXC+ 12-Channel DSMR+ Transmitter Only
Replacement Parts
Optional Parts
DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
SPM6130
DXC+ 12-Channel DSMR+ Transmitter with SR615 Receiver
Replacement Parts
Optional Parts
No results for your given fitment filters

PRODUCT SPECS

Application
Surface
Connector Type
Servo
Gear Type
Metal
Maximum Servo Speed
0.09 @ 4.8v, 0.07 @ 6.0v, 0.05 @ 8.4v
Maximum Servo Torque
55oz @ 8.4v
Product Height
1.06" (27 mm)
Product Length
0.9" (23 mm)
Product Weight
0.7 oz
Product Width
0.49" (12 mm)
Programmable
No
Servo Operating Voltage
4.8 - 8.4V (HV)
Servo Size Category
Mini
Spline Count
20 - Tooth
Torque
30oz @ 4.8v, 41oz @ 6.0v, 55oz @ 8.4v
