Axial - Item No. AXI238000
5 out of 5 Customer Rating

Standard Axle Conversion Kit, 12.3" & 13.9": SCX10 III

$169.99
RC Club points earned on this item shown at checkout.
For rock racing and crawling enthusiasts eager to give SCX10™ III vehicles maximum scale accuracy, Axial® offers a standard straight axle kit that includes everything you need to convert the Portal Axle SCX10™ III to a standard axle setup.
  • Scale-looking AR45 standard solid axles come complete with ball bearings and metal gears for durability
  • AR45 universal joint axles provide up to 45 degrees of steering plus smoother action for a higher performing efficient drivetrain
  • All links are metal and all pivot points are on stainless steel balls for long-lasting performance
  • Includes transmission gears (20T/34T) for use with the standard axle gear ratio
  • Kit is designed for a 12.3” (313mm) wheelbase but supports all wheelbases, including 12" (305mm), 11.4" (290mm) and 13.9" (353mm). Adjustments to rear links may be required
  • Box contains all parts needed to convert the Portal Axle SCX10™ III to Standard Axle
  • (1) Product Manual
  • Axial® SCX10™ III Kit or RTR
  • Tools (see manual)

Overview

For crawling enthusiasts eager to give SCX10 III vehicles maximum scale accuracy, Axial® offers a straight axle kit that includes everything you need to convert the Portal Axle SCX10 III to Standard Axle. The SCX10 III Standard Axle Conversion Kit is designed for a 12.3" (313mm) wheelbase but supports all wheelbases, including 12" (305mm), 11.4" (290mm) and 13.9" (353mm). Adjustments to rear links may be required.

All of the parts required for the SCX10 III standard axle conversion are included — front axle, rear axle, links, and shocks. To make installation easy, the axles, links, and shocks come factory-assembled and ready to bolt in. Axial® also includes oil for the shocks.

The kit's scale-looking AR45 standard solid axles feature ball bearings and metal gears for long-lasting durability. AR45 universal joint axles provide up to 45 degrees of steering along with smoother action for an efficient, high performing drivetrain. Hypoid differential gears are used, along with a 6-bolt locker in both the front and rear axles for strength and durability.

Included tunable, large bore aluminum shocks provide excellent damping over dirt, gravel, rock, and other demanding off-road surfaces. A bleed screw helps to bleed air from the shocks during assembly for consistent performance.

All links are metal, and all pivot points are on stainless steel balls that provide dependable endurance. Give your Axial® SCX10 III vehicle the most accurate scale looks to match its realistic performance on the trails with the SCX10 III Standard Axle Conversion Kit.

Features

  • Includes everything needed to convert the Axial® SCX10 III to standard axles, assembled for easy installation
  • Scale-looking AR45 standard solid axles come complete with ball bearings and metal gears for durability
  • AR45 universal joint axles provide up to 45 degrees of steering plus smoother action for a higher performing efficient drivetrain
  • Hypoid differential gears and a 6-bolt locker in both front and rear axles increase strength and durability
  • Large bore aluminum shocks are tunable to achieve the best damping rate
  • All links are metal and all pivot points are on stainless steel balls for long-lasting performance
  • Includes transmission gears (20T/34T) for use with the standard axle gear ratio
  • Kit is designed for a 12.3" (313mm) wheelbase but supports all wheelbases, including 12" (305mm), 11.4" (290mm) and 13.9" (353mm). Adjustments to rear links may be required.

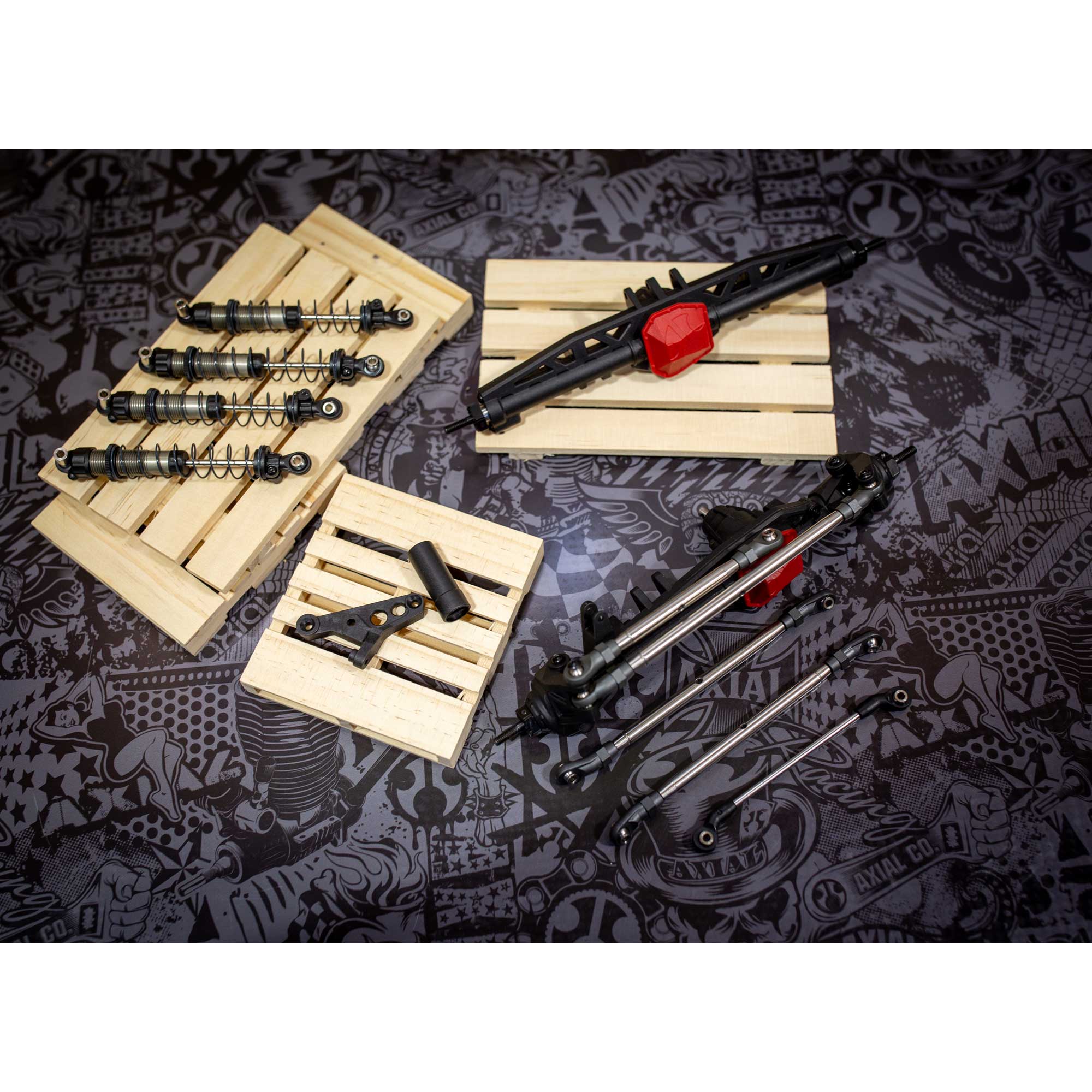

EVERYTHING INCLUDED
EVERYTHING INCLUDED

Everything needed to convert the Axial® SCX10 III to standard axles is included and assembled for easy installation.



AR45 STANDARD SOLID AXLES
AR45 STANDARD SOLID AXLES

New AR45 standard solid axle housings feature full ball bearings with metal gears and extra "trussing" for more durability. The front 3-piece axle features an offset pumpkin for more scale detail.



AR45 UNIVERSAL JOINTS
AR45 UNIVERSAL JOINTS

AR45 universal joint axles provide up to 45 degrees of steering along with smoother action for an efficient, high performing drivetrain.



HYPOID DIFFERENTIAL GEARS
HYPOID DIFFERENTIAL GEARS

Hypoid differential gears are used, along with a 6-bolt locker in both front and rear axles for strength and durability.



100mm LARGE BORE ALUMINUM SHOCKS
100mm LARGE BORE ALUMINUM SHOCKS

Longer 100mm large bore hard anodized shocks allow you to take advantage of the AR45 Axle design. The 10mm larger bore size creates more fluid volume for better performance. A bleed screw helps to bleed air from the shock during assembly for greater consistency. The shocks are also tunable to achieve the best damping rate.



METAL LINKS
METAL LINKS

All links are metal, and all pivot points are on stainless steel balls that provide durable, long-lasting performance.



TRANSMISSION GEARS
TRANSMISSION GEARS

Transmission gears (20T and 34T) for use with the standard axle gear ratio are included.



WHEELBASE SUPPORT
WHEELBASE SUPPORT

The SCX10 III Standard Axle Conversion Kit is designed for a 12.3" (313mm) wheelbase but supports all wheelbases, including 12" (305mm), 11.4" (290mm) and 13.9" (353mm). Adjustments to rear links may be required.



PRODUCT SPECS

Scale
1/10
Application
Converts the Axial SCX10 III to standard axles
Ball Bearings
Yes
Shock Type
Tunable, large bore, fluid filled, aluminum body with air bleed screw
Bushing Or Bearing
Bearing
Gear Type
Metal
Front or Rear
Front and Rear
Stock Vehicle Parts
No
