Discontinued
Dynamite - Item No. DYNC3016
3.5 out of 5 Customer Rating

Passport P2 100W AC/DC 2-Port Multicharger with Bluetooth Connectivity

Overview

The Dynamite® Passport™ P2 AC Plus 2 Port AC/DC Multi-Charger represents the pinnacle of premium, high-performance chargers. With dual 100W output capability, the Passport P2 can charge Li-Po batteries in half the time it takes lower wattage/amperage chargers. In addition, you get the full gamut of charging features, including the ability to charge virtually all battery types and intuitive LCD display.

Key Features

  • Powerful 100W AC/DC Multi-Charger
  • Two channels charge two different kinds of batteries simultaneously
  • Charges Lipo, LiHV, LiFe, NiMH, NiCd, and Pb batteries
  • Charges 1-6 cell Lipo/ LiHV/LiFe, 1-15 cell NiMh/NiCd, and 2-20V Pb
  • Dynamite Dashboard-Smart phone control and monitor via Bluetooth
  • High visibility, simplified LCD interface
  • Built-in balancing ports
  • Integrated voice functionality
  • 5-year limited warranty

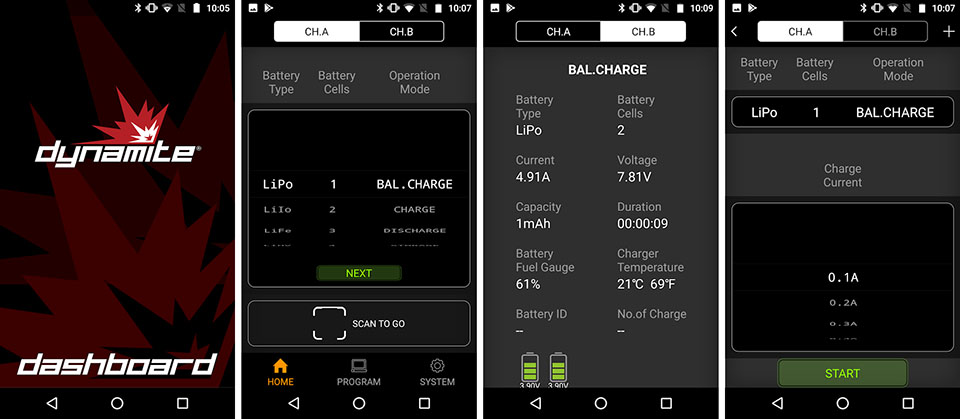

Dynamite Dashboard

The Dynamite Dashboard provides seamless integration to select Dynamite "P" Series chargers by bringing real-time monitoring to your mobile device. You can monitor the charge status of your batteries, view real time battery stats including; battery type, battery cells, charge current, voltage, battery capacity, battery charge level and more. Simply download the app, pair your mobile device to the compatible Dynamite P-Series charger via Bluetooth and take advantage of viewing real-time charge stats while monitoring your battery's charge process. With Bluetooth communication, the Dynamite Dashboard puts your charge setting control at your fingertips.

Thanks to Dynamite's QR Scan with Smartphone control functionality, you can scan the QR code on your Dynamite Reaction 2.0 batteries to automatically set the optimal charge settings for that specific battery making using Dynamite "P" Series chargers easy, convenient and safe. Additionally, you have the ability to create your own QR codes for any battery line/specs.

Available on Google Play Store button
 Available on Apple iTunes button



DYNAMITE DASHBOARD

Video Overview

PRODUCT SPECS

Battery Balance Connector
XH Balancing Adapter Board
Battery Type
LiFe (3.3V per cell), LiHV (3.8V per cell), LiPo (3.7V per cell), NiCd (1.2V per cell), NiMH (1.2V per cell), Pb (2.0V per cell)
Connector Type
EC3
Discharge
Yes
Display
Yes
Input Voltage
100-240V AC or 11-18V DC
Integrated Balancing
Yes - Internal Balancer & External Adapter
LiPo Compatibility
1S, 2S, 3S, 4S, 5S, 6S
Low Input Voltage Protection
Yes
Maximum Charge Rate
0.1A-10A x 2
Maximum Continuous Discharge Rate
0.10A-2.0A x 2
Number of Cells
1-6 cell Lipo/ LiHV/LiFe, 1-15 cell NiMh/NiCd, and 2-20V Pb
Number of Output Ports
2
Output
100W max AC, 200W DC
Output Connector
Banana
Over Current Protection
Yes
Part Type
Electronics
Peak Detection
Yes
Product Height
2.6" (67mm)
Product Length
5.5" (140mm)
Product Weight
1.4lbs (668g)
Product Width
6.0" (153mm)
Programmable
Yes
Reverse Polarity Protection
Yes
Safety Timer
Yes
Short Circuit Protection
Yes
Thermal Protection
Yes
