Spektrum SMART -
Item No.
SPMXSM1400

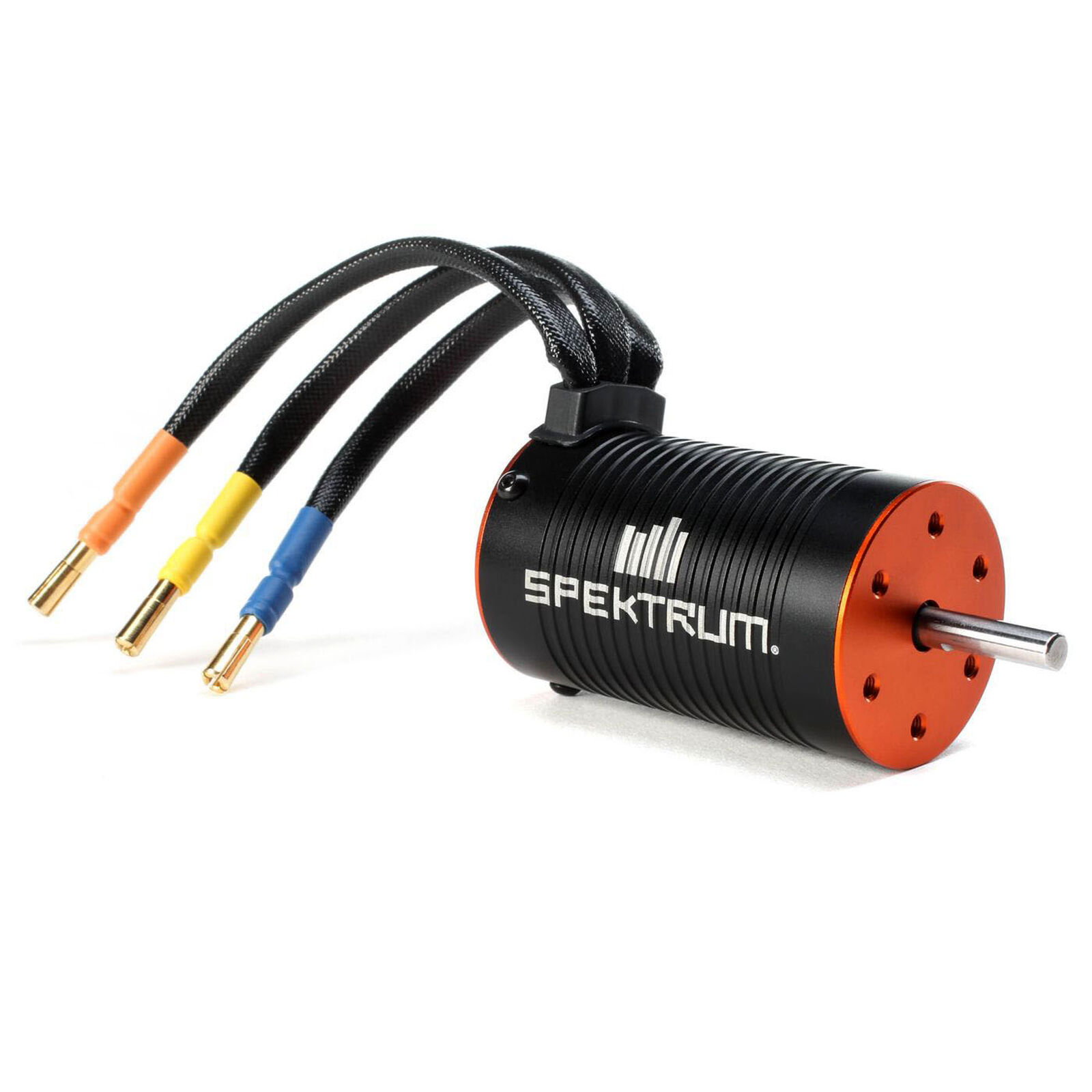

Firma 4000Kv Brushless Motor
$44.99
- 4mm Gold Plated Bullet Connectors
- Brushless Non-Sensored Design
- 1/8" (3.175mm) Alloy Steel Output Shaft
- Firma 4000Kv Brushless Motor

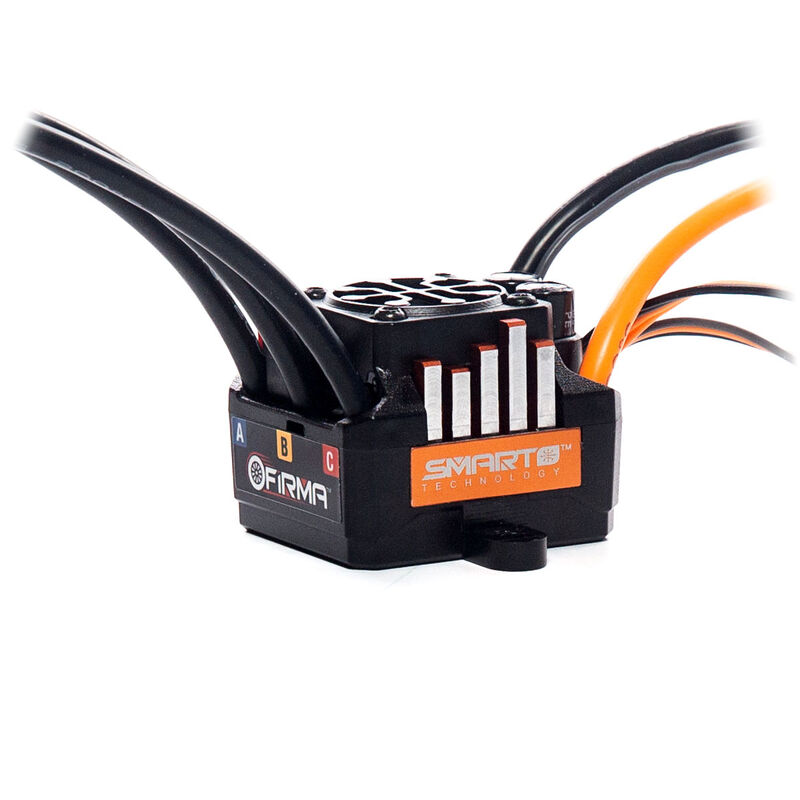

- 85A ESC
Quick Links
Manuals & SupportFeatures
- Excellent upgrade for 540- and 550-size brushed motors with the same diameter and mounting pattern (vehicle must accept pinions with a 1/8" bore)
- High-quality 4-pole sintered rotor
- 4mm gold plated bullet connectors
- High-quality construction with precision ball bearings and hardened steel 1/8" shaft
Overview

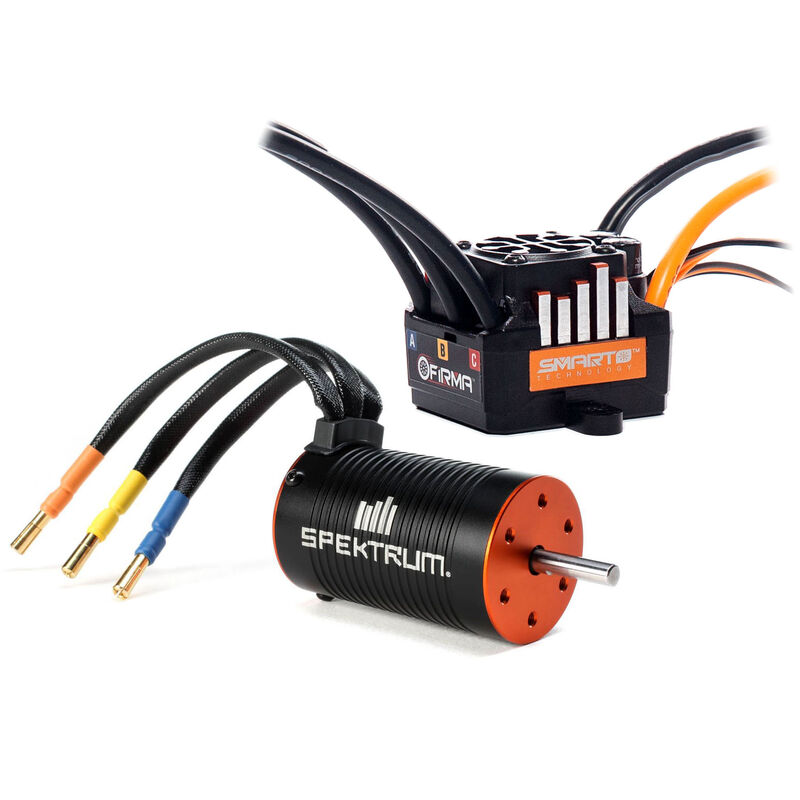

The Firma 4000Kv brushless motor is a great choice for 1/10 scale 4WD, 2WD, and on-road models running on 2S LiPo power. Featuring a low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 3.175mm (1/8") output shaft, and precision bearings for high durability and smooth rotation. Preinstalled 4mm gold plated bullet connectors for easy installation, and perfectly matched for the Firma 85A Smart ESC.
Product Fitments
No results for your given fitment filters
PRODUCT SPECS
Motor Design
Application
Number of Poles
Product Weight
Shaft Diameter
Maximum Continuous Current
Motor Type
Bushing Or Bearing
Input Voltage
RPM/Volt (Kv)
Sensored
Connector Type
Efficiency
Motor Class
Motor Size
