Discontinued
Axial - Item No. AXI03012
4.3 out of 5 Customer Rating

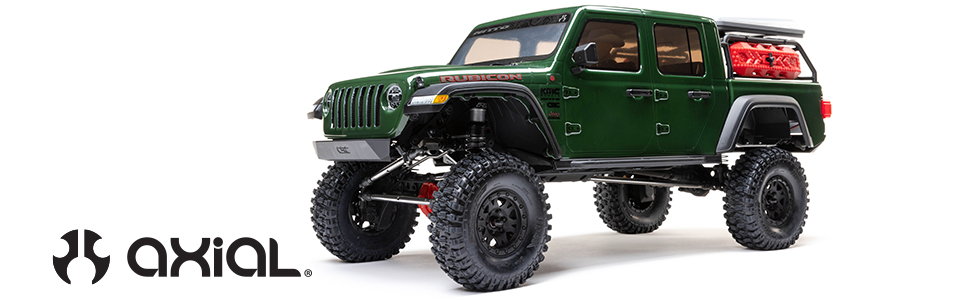

1/10 SCX10III Jeep Gladiator Elite Edition 4WD RTR, Green

At Horizon, we're always striving to provide you with the best RC products on the planet. When it comes to scale crawling, high performance builds stand out from the pack, and this Elite Member Exclusive Jeep JT Gladiator was professionally built to provide that one of a kind experience right out of the box.
  • 1 Of Only 25 Units
  • Numbered vinyl insert included for authenticity
  • Horizon Hobby Elite Member Exclusive Product
  • Axial® SCX10™ III Jeep® JT Gladiator 4WD With Upgrades Pre-installed
  • Custom Painted Green Body
  • Everything You Need To Start Crawling
  • (1) 1/10 SCX10III Jeep Gladiator Elite Edition 4WD RTR, Green
  • (1) Spektrum Firma™ Smart 40A ESC/Receiver (installed)
  • (1) Spektrum 15kg Servo (installed)
  • (1) Spektrum™ DX3™ DSMR® Radio
  • (4) Pro-Line 1/10 Big Bore Scaler Shocks
  • (4) Pro-Line 1/10 Class 1 Hyrax G8 1.9" Rock Crawling Tires
  • (4) Pro-Line Impulse 1.9" 12mm Crawling Wheels
  • (1) Axial Tuff Stuff Overland Accessory Pack
  • (1) Spektrum S155 G2 1x55W AC Smart Charger
  • (1) Spektrum 11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery
  • (4) AA Transmitter Batteries
  • (1) Product Manual
  • Nothing! Everything is included in the box!
Early Access

Elite Member Exclusive!

At Horizon Hobby, we’re always striving to provide you the best RC Products on the planet. When it comes to scale crawling, Axial and high-performance customer builds stand out from the pack, and this Elite Member Exclusive Jeep Gladiator Elite Edition was professionally built with some of the most popular Pro-Line components for a one-of-a-kind experience out of the box.

1/10 SCX10III Jeep Gladiator Elite Edition 4WD RTR, Green

Prebuilt With
  • Pro-Line 1/10 Big Bore Scaler Shocks
  • Pro-Line 1/10 Class 1 Hyrax G8 1.9" Rock Crawling Tires
  • Pro-Line 1/10 Impulse 1.9" 12mm Crawling Wheels
  • Axial® Tuff Stuff Overland Accessory Pack
Includes
  • Spektrum™ 11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery
  • Spektrum S155 G2 1x55W AC Smart Charger
  • AA Batteries
  • Spare Original Components


Features

  • Replica V8 engine cover, transmission housing and transfer case cover and protect the motor while improving scale appearance and adding forward-mounted weight.
  • DIG function transmission option lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius.
  • Two-speed transmission option (some assembly required) allows you to increase vehicle speed by approximately 40%.
  • Drivers can choose between the DIG and 2-speed transmission options, or run both with a 4-channel transmitter and two servos (not included).
  • AR45 Portal Axles feature an offset front housing for realistic looks.
  • Axle housings also use portal gears for increased ground clearance and a universal that provides 45 degrees of steering.
  • Differential locker features Hypoid gears, allowing for smaller size gears, improved gear reduction and reduced torque twist.
  • Authentic Jeep® JT Gladiator body includes over 20 injection-molded parts including bed rack, door handles, mirrors, hood vents and more.
  • Three-piece body provides a more realistic deep bed.
  • New centered battery position improves chassis balance with front-mounted motor.
  • Chassis side pods offer mounting locations for smaller LiPo batteries, if desired.
  • Hard anodized oil-filled shocks feature shock cap with bleed screw for easier rebuilds.
  • All drive train components in the transmission, portals and axle gears are metal for extreme durability — with pinion gear included, the vehicle has 23 metal gears in total.
  • Improved materials increase durability and stiffness while holding tighter tolerances to eliminate most "slop".
  • Metal stainless steel pivot balls at all suspension points increase durability and wear life for consistent handling.
  • Improved suspension geometry further reduces torque twist while allowing chassis fine-tuning.
  • Extended 13.9 inch wheelbase with longer frame rails and chassis supports a more realistic version of the Jeep® JT Gladiator body.
  • Detailed interior with molded driver adds to the vehicle's realistic scale looks.
  • New rear body mounts simplify body removal.
  • Injection-molded inner fenders hide internal components usually visible from the side of the chassis.
  • Spektrum DX3 DSMR® radio is fully compatible with the Smart telemetry potential of the installed Firma Smart 40A ESC/receiver.
  • Included Spektrum 15kg metal gear servo and all electronics are protected by a waterproof design for confident driving in any weather and trail conditions.

Overview

The 1/10 scale Axial® SCX10 III Jeep® JT Gladiator 4WD RTR marks the next step forward in ready-to-run, scale off-road action. While continuing to incorporate key components that have made SCX10 vehicles successful, the SCX10 III chassis increases realism with details that include a replica V8 engine to house the front-mounted 540 brushed motor, mated to a realistic transmission housing and transfer case like a 1:1 vehicle. The Spektrum DX3 3-channel 2.4GHz DSMR® transmitter and Firma 40A ESC/receiver are also ready to give you the advantages of innovative Spektrum Smart technology.

Out of the box, the SCX10 III Jeep® JT Gladiator transmission offers a third-channel DIG function that lets you lock the rear axle from the transmitter for front wheel drive and a tighter turning radius. Though locked out from the factory, you can set up the vehicle to have a 40% faster second gear instead of DIG — or, by adding another micro servo and using a radio with at least four channels (such as the 5-channel Spektrum DX5), have simultaneous access to both the DIG and two-speed functions.

The SCX10 III Jeep® JT Gladiator uses new AR45 portal axles to improve performance by increasing the ground clearance and reducing torque twist. The motor is located at the front of the chassis for forward weight. The standard battery tray is positioned near the vehicle's center for improved balance and accepts full-size LiPo or NiMH packs. There are also locations in the side pods for drivers who prefer smaller "shorty" LiPo packs. Inner fenders and floor sides hide internal components that would usually be visible from the side of the chassis.

Topping off the chassis is a scale Jeep® JT Gladiator body that mirrors its full-size counterpart with many highly authentic details. The body has over 20 injection-molded parts including a bed rack, door handles, mirrors, hood vents and more — taking polycarbonate body realism to the next level. The body has been split into three pieces for a more realistic deep bed.

With the Spektrum DX3 radio, you'll enjoy the superior range, response, and interference resistance of DSMR® technology. Together with the installed Firma Smart 40A ESC/receiver, it also offers the advantages of exclusive Spektrum Smart technology. Install a Spektrum Smart LiPo battery and you can view vehicle battery capacity at a glance on the DX3 transmitter's voltage level indicator. Outfit the DX3 with the optional BT2000 Bluetooth module and download the free Spektrum Dashboard app to your smart device, and you're also ready to use Smart real-time telemetry — without needing on-board sensors or modules.

Video Overview

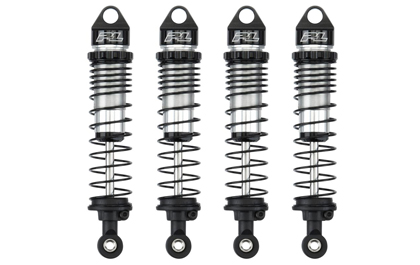

Pro-Line Big Bore Scaler Shocks
Pro-Line Big Bore Scaler Shocks

The large bore allows the Big Bore Shocks to function as true performance shocks due to the larger oil volume in the shock body. They feature CNC machined Aluminum Shock Caps, Collars, Bodies, Bottom Caps, and Hard Chrome Coated Steel Shock Shafts.

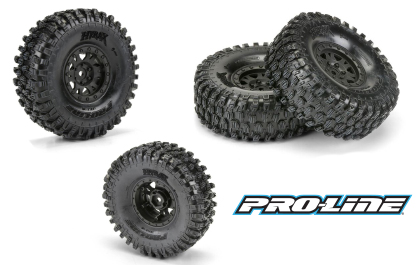

Pro-Line Hyrax Tires and Impulse Wheels
Pro-Line Hyrax Tires and Impulse Wheels

The Hyrax tire is ready for anything your scale adventure might throw at you. The Hyrax features an aggressive and open tread pattern with each tread block containing multiple sipes for incredible tread flex. The Impulse wheels are designed to not only look scale but to be super easy to use by only requiring 6 screws per wheel for mounting tires.

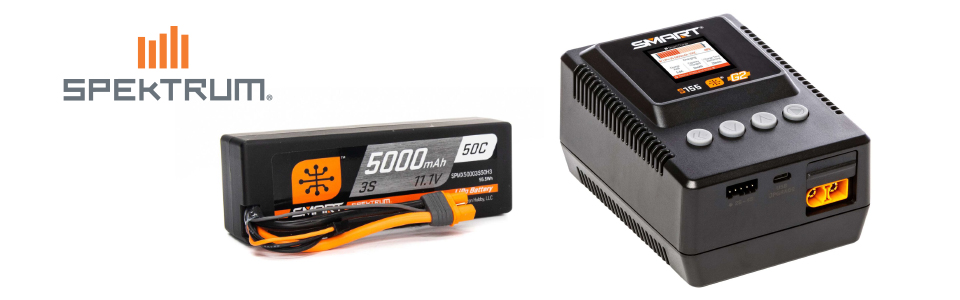

Spektrum 11.1V 5000mAh 3S 50C Smart LiPo Battery and S155 Smart Charger
Spektrum 11.1V 5000mAh 3S 50C Smart LiPo Battery and S155 Smart Charger

When connected to a Spektrum Smart charger, unique parameters and health of your Smart LiPo battery upload from the Smart memory microchip integrated into the battery. This Smart LiPo battery is factory assembled with the next-generation IC3 output connector that utilizes a data transfer wire to relay saved information to your Smart Chargers. Through the charger, you can set and record preferred settings, such as charge rates and self-discharge options, so that all you have to do to charge the pack is press the "start" button. Smart technology will take care of the rest.

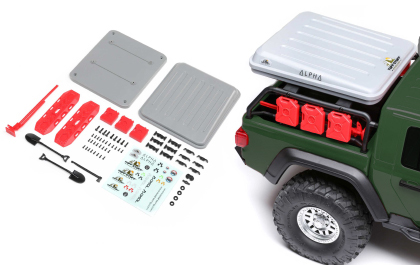

Axial Tuff Stuff Overland Accessory Pack
Axial Tuff Stuff Overland Accessory Pack

The trend in full size off roading is to prepare your off road vehicle for trips off the grid. The Tuff Stuff Overland Accessory pack includes many of the items you would use in the real world. This includes an injection molded and licensed “Tuff Stuff Alpha Hard Top Roof Tent” that mounts directly to the Gladiator Rack. Included with the pack is a pair of recovery boards that can be removed and used for those times that extra traction is needed. Three fuel cells can be mounted to the other side of the rack as well as two shovels and a recovery jack.



HIGHLY DETAILED LEXAN BODY WITH INJECTION-MOLDED FEATURES
HIGHLY DETAILED LEXAN® BODY WITH INJECTION-MOLDED FEATURES

The scale Jeep® JT Gladiator body mirrors its full-size counterpart with many highly authentic details. In addition, the body has over 20 injection-molded parts including a bed rack, door handles, mirrors, hood vents and more — taking polycarbonate body realism to the next level.

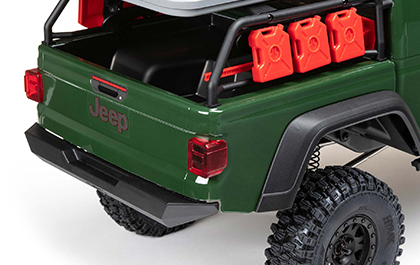

THREE-PIECE BODY
THREE-PIECE BODY

The Jeep® JT Gladiator body has been split into three pieces, allowing for a more realistic deep bed that can accommodate all the scale items you wish to add.



REPLICA V8 ENGINE COVER, TRANSMISSION HOUSING AND TRANSFER CASE
REPLICA V8 ENGINE COVER, TRANSMISSION HOUSING AND TRANSFER CASE

The V8 engine cover protects the 540-size motor and is mated to a scale transmission housing. In addition to offering motor protection and realistic looks, the design gives the chassis forward-mounted weight.



DIG TRANSMISSION WITH TWO-SPEED OPTION
DIG TRANSMISSION WITH TWO-SPEED OPTION

The transmission arrives set up with a DIG function for locking the rear axle from the DX3 transmitter — giving you the tighter turning radius of front wheel drive on demand. You can also choose to set up the vehicle with a 40% faster second gear instead of DIG, or upgrade with an additional micro servo and 4+ channel radio (such as the Spektrum DX5) to have access to both the DIG and two-speed functions simultaneously.



PORTAL OFF-SET AXLE HOUSING WITH HYPOID RING AND PINION GEAR
PORTAL OFF-SET AXLE HOUSING WITH HYPOID RING AND PINION GEAR

The new AR45 portal axles feature an offset front housing for more realistic looks, portal gears for extra ground clearance, and universals that provide 45 degrees of steering. In addition to the portal gears, the differential locker includes tried-and-true Hypoid gears — allowing for smaller size gears while improving gear reduction at the axle and reducing torque twist.



NEW BATTERY MOUNTS
NEW BATTERY MOUNTS

The Jeep® JT Gladiator SCX10 III chassis provides a new battery location near the center of the vehicle. With the motor now up front, the battery position creates a more balanced chassis. There are also locations in the side pods for drivers who prefer smaller size LiPo packs.



IMPROVED MATERIALS
IMPROVED MATERIALS

The materials used in the SCX10 III chassis provide a level of durability and stiffness never before seen in an Axial® scaler. These new materials allow for even tighter tolerances to be held and less "slop" than ever before.



STAINLESS PIVOTS
STAINLESS PIVOTS

The SCX10 III Jeep® JT Gladiator suspension features metal stainless steel pivot balls at all suspension points. In addition to durability, they provide long wear life to keep the suspension handling consistent.



OPTIMIZED SUSPENSION GEOMETRY
OPTIMIZED SUSPENSION GEOMETRY

The Axial® team took what they learned from the SCX10 II and improved the suspension geometry for the Portal Axles, helping to further reduce torque twist while allowing drivers to fine-tune the chassis as they wish.



NEW EXTENDED FRAME RAILS
NEW EXTENDED FRAME RAILS

Instead of creating a smaller body to fit the SCX10 III chassis, the design team extended the wheelbase to 13.9 inches with longer frame rails and chassis supports, allowing Axial® to provide a more realistic version of the Jeep® JT Gladiator.



DETAILED INTERIOR WITH MOLDED DRIVER
DETAILED INTERIOR WITH MOLDED DRIVER

With its molded driver figure and more, the detailed interior of the Axial® SCX10 III Jeep® JT Gladiator enhances its exciting scale looks.



NEW REAR BODY MOUNT DESIGN
NEW REAR BODY MOUNT DESIGN

Body removal has been made easier with a new rear body mount design.



NEW INNER FENDER LINERS
NEW INNER FENDER LINERS

The SCX10 III Jeep® JT Gladiator body's unique inner fenders hide internal components that would usually be visible from the side of the chassis.



ALL-METAL GEARS
ALL-METAL GEARS

All of the drive train components in the transmission, portals and axle gears are made of metal for extreme durability.



SPEKTRUM DX3 2.4GHz DSMR TRANSMITTER
SPEKTRUM DX3 2.4GHz DSMR® TRANSMITTER

The included Spektrum DX3 radio features exclusive DSMR® technology for superior range, response, and interference resistance. It's also fully compatible with the Smart telemetry potential provided by the vehicle's installed Spektrum Firma Smart 40A ESC/receiver. In addition, it comes with the thumb steering attachment for greater versatility when driving.



SPEKTRUM 15KG WATERPROOF SERVO
SPEKTRUM 15KG WATERPROOF SERVO

Drive with confidence in any weather and trail conditions — the electronics, including the Spektrum 15kg metal gear servo, are protected by a waterproof design.



SPEKTRUM FIRMA SMART 40A ESC/Rx
SMART TECHNOLOGY
SPEKTRUM FIRMA SMART 40A ESC/Rx

With the Firma Smart 40A ESC/receiver and DX3 transmitter, you're equipped to experience the telemetry advantages of exclusive Spektrum Smart technology. Install a Spektrum Smart LiPo battery to follow vehicle battery capacity on the transmitter's voltage level indicator. The Firma Smart 40A ESC/Rx is compatible with the optional Dynamite® LED Program Card (sold separately) for quick, easy programming of multiple ESC settings.

PRODUCT SPECS

Approximate Assembly Time
No Assembly Required
Ball Bearings
Full set
Battery
Included
Body
3-piece, highly detailed Lexan
Brakes
Integral with ESC
Bushing Material
Metal
Charger
Included
Chassis
Adjustable Steel C-channel
Completion Level
Ready-To-Run
Differential
Locked
Drive Type
Forward/Brake/Reverse
Drivetrain
4WD
Final Drive Ratio
45.6:1 Low / 31.3:1 High
Front Track
8.9 in (226mm)
Gear Pitch
32-Pitch
Ground Clearance
3 in (76.2mm)
Max Battery Dimensions
5.45 x 1.83 x 1.38" (138.5 x 46.5 x 35mm)
Motor Type
Brushed
Pinion
14T
Power Type
Electric
Product Height
9.5" (241 mm)
Product Length
22.25" (565 mm)
Product Weight
7lbs (3175g)
Product Width
9.25" (235 mm)
Radio
Included
Rear Track
8.9 in (226mm)
Receiver
Included
Scale
1/10
Servos
Included
Shock Type
Oil-filled
Speed Control
Included
Spur Gear
40T
Suspension
Multi-link Solid Axle With Stainless Steel Pivot Balls
Technology
Smart
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Wheelbase
13.9" (353 mm)
