Axial - Item No. AXI03030T1
5 out of 5 Customer Rating

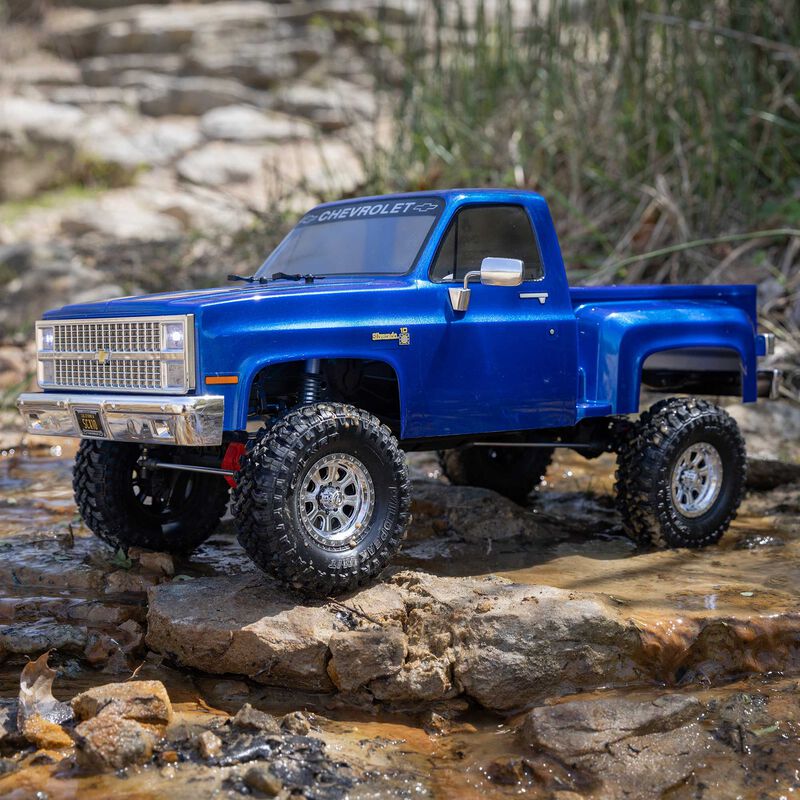

1/10 SCX10 III Base Camp 1982 Chevy K10 4X4 RTR, Blue

$449.99
RC Club points earned on this item shown at checkout.
Complete Your Product
11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery: IC3
Spektrum SMART - SPMX50003S50H3 AXI03030T1
11.1V 5000mAh 3S 50C Smart Hardcase LiPo Battery: IC3
$74.99
S155 55W AC G2 Smart Charger
Spektrum SMART - SPMXC2050 AXI03030T1
S155 55W AC G2 Smart Charger
$59.99
Based on the popular pickup truck that became an icon of American off-roading in the late 1970s and 1980s, the ready-to-run, officially licensed Axial SCX10 III Base Camp 1982 Chevy K10 looks great, goes anywhere, and offers unbeatable performance.
  • Officially licensed Proline 1982 Chevy K10 stepside body
  • Strong SCX10 III steel C-channel chassis
  • High clearance AR45 portal axles
  • Durable LCXU transmission
  • Factory assembled and ready to run
  • (1) 1/10 SCX10 III Base Camp 1982 Chevy K10 4X4 RTR
  • (1) Dynamite 35T 540 Brushed Motor
  • (1) Spektrum SLT3 3-Channel SLT Radio
  • (1) Spektrum SR315 DSMR 3-Channel Receiver
  • (1) Spektrum S614 15kg Steel Gear WP Servo 23T
  • (1) Spektrum 40A Waterproof Brushed ESC
  • (4) AA Transmitter Batteries
  • (1) SCX10 III Base Camp 1982 Chevy K10 Product Manual
  • (1) 2S or 3S LiPo Battery with EC3 or IC3 Connector
  • (1) Compatible LiPo Charger

Features

  • Factory assembled and ready to run
  • Strong SCX10 III steel C-channel chassis
  • High clearance AR45 portal axles
  • Durable LCXU transmission
  • All-metal pivot balls
  • All-metal gears
  • Full ball bearings
  • Tunable oil-filled shocks
  • Officially licensed 1982 Chevy K10 stepside body
  • Officially licensed Falken Wildpeak tires
  • Dynamite 35T brushed motor
  • Spektrum 40A brushed ESC
  • Spektrum SLT3 3-channel 2.4GHz radio

Overview

Even casual automotive enthusiasts instantly recognize the Chevy K10 pickup. Although its straight-lined appearance earned it the "square body" nickname, the iconic truck was also among the first C/K generations to be optimized by computers and wind tunnels for lower drag and improved fuel economy. The result was a beautiful and rugged classic that you can now drive for yourself with the Axial SCX10 III Base Camp 1982 Chevy K10.

Offered in a proven ready-to-run package, the Base Camp K10 is easy to get going and goes almost anywhere — just like the full-size truck, which could be found driving over country roads, farm fields, and wooded trails before ending the day parked on Main Street. Designed more for Americana-inspired off-road fun than performing technical climbs and precarious sidehills, the Base Camp K10 is ideal for anyone. It's a great first crawler and a fantastic addition to every longtime Axial fan's fleet.

The officially licensed Proline Chevy K10 stepside body comes expertly factory-painted and detailed. Axial matches the accurate scale looks with equally impressive durability and performance. The SCX10 III steel C-channel chassis is strong, realistic, and easy to maintain. Included AR45 portal axles add high ground clearance. The rugged LCXU transmission, with full ball bearings and all-metal internal gears, works with portal or standard axles. And the list goes on, with an optimized suspension, tunable oil-filled shocks, a trail-tough drivetrain, and much more.

For more RTR convenience, the Base Camp K10 power system — featuring a Dynamite 35T brushed motor and Spektrum 40A brushed ESC — also arrives factory-installed, and the supplied Spektrum SLT3 radio is ready to deliver dependable 2.4GHz control. Just add your choice of 2S or 3S LiPo battery and take the wheel of this classic American truck!

Video Overview

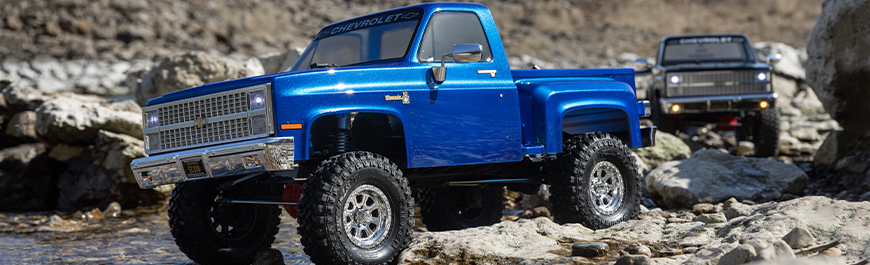

AXI03030 Header Image

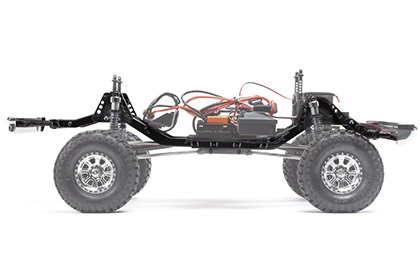

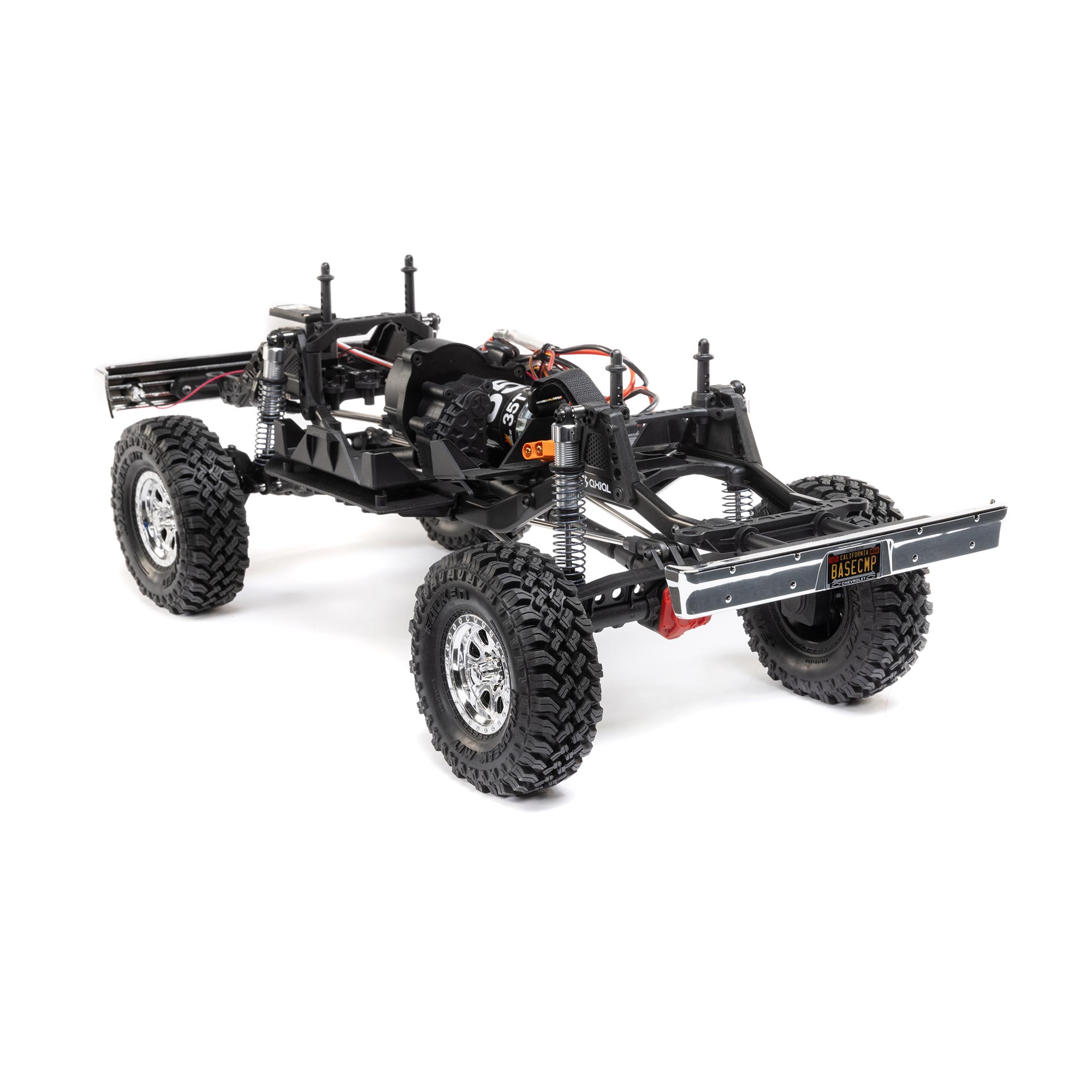

SCX10 III STEEL C-CHANNEL CHASSIS
SCX10 III STEEL C-CHANNEL CHASSIS

Strong and stiff, the SCX10 III steel C-channel chassis reduces frame flexing and increases the precision of suspension movement.

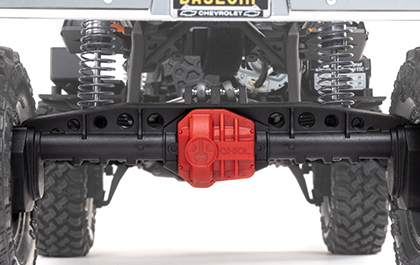

AR45 PORTAL AXLES
AR45 PORTAL AXLES

Included AR45 portal axles provide extra ground clearance at the differential for easier off-road maneuvering.



LCXU TRANSMISSION
LCXU TRANSMISSION

The LCXU 4-wheel drive transmission is durable, simple, and works with standard and portal axles. The transmission includes a full set of ball bearings and all-metal internal gears for strength and durability.

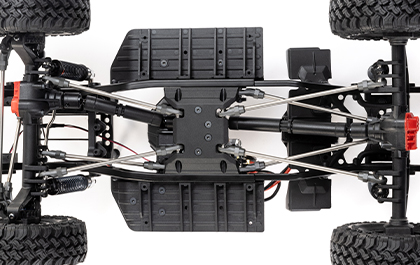

OPTIMIZED SUSPENSION GEOMETRY
OPTIMIZED SUSPENSION GEOMETRY

The front suspension geometry of the Base Camp K10 is optimized to reduce bump steer, while the rear 4-link reduces torque twist.

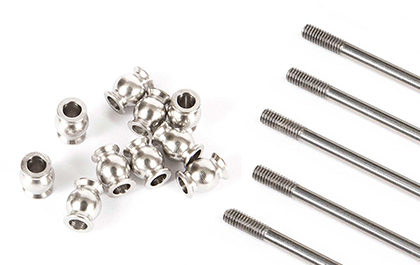

METAL LINKS
METAL LINKS

All links and pivot balls are metal for durable, long-lasting performance.

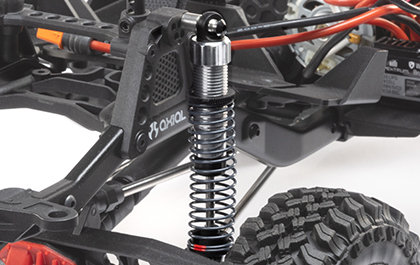

ALUMINUM ADJUSTABLE COILOVER SHOCKS
ALUMINUM ADJUSTABLE COILOVER SHOCKS

The oil-filled shocks have aluminum threaded bodies and a single coilover spring. The shocks are tunable for achieving the best dampening rate.

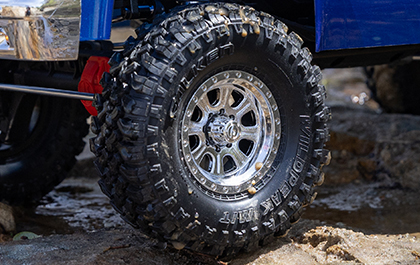

FALKEN WILDPEAK M/T TIRES
FALKEN WILDPEAK M/T TIRES

The new 4.19" Falken Wildpeak M/T R35 compound tires on one-piece Raceline 928 Monster wheels included with the Base Camp K10 provide optimized ground clearance and grip on dirt, rocks, and all other off-road trails.

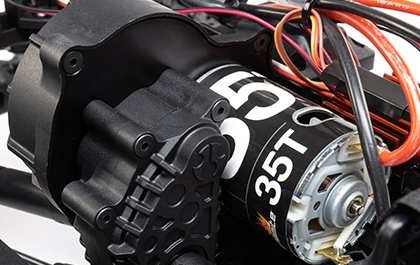

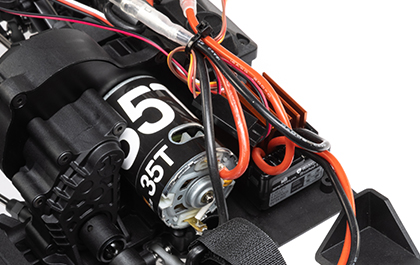

INSTALLED POWER SYSTEM
INSTALLED POWER SYSTEM

The included and installed power system features a Dynamite 35T brushed motor and Spektrum 40A brushed ESC. With this simple and reliable combo, you'll spend more time on trail and less time on maintenance.

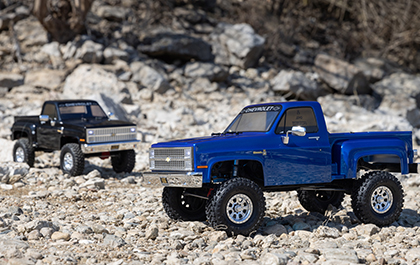

DETAILED SCALE PROLINE CHEVY K10 BODY
DETAILED SCALE PROLINE CHEVY K10 BODY

Factory-painted and detailed, the officially licensed 1982 Proline Chevy K10 stepside body captures the instantly recognizable "square body" lines of the iconic truck.

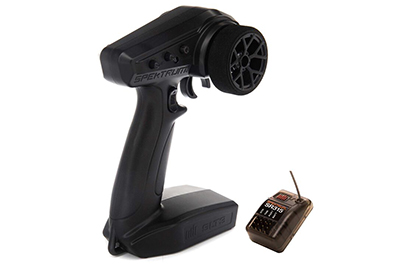

SPEKTRUM SLT3 RADIO SYSTEM
SPEKTRUM SLT3 RADIO SYSTEM

The included SLT3 3-channel radio provides dependable 2.4GHz control plus user-adjustable features including steering and throttle trims, steering rate, and throttle limits. The included SR315 DSMR 3-Channel Sport Receiver allows for an easy upgrade path to higher channel transmitters such as the Spektrum DX5C, DX5 Rugged or the DX5 Pro.



AXI03030 Footer Image

PRODUCT SPECS

Product Width
9.25" (235 mm)
Radio
Included
Power Type
Electric
Gear Pitch
32P
Servos
Included
Charger
Sold Separately
Differential
Locked
Receiver
Included
Shock Type
Oil-Filled/Coil-Over Spring
Product Weight
5lb (2.3kg)
Tire Tread
Falken Wildpeak M/T
Vehicle Type
Rock Crawler
Water-Resistant
Yes
Body
Polycarbonate
Brakes
Integral with ESC
Pinion
14T
Scale
1/10
Ball Bearings
Full Set
Chassis
Adjustable Steel C-channel
Completion Level
Ready-To-Run
Drivetrain
4WD
Drive Type
Forward/Brake/Reverse
Make
Chevy
Product Height
9.75" (248 mm)
Tire Compound
R35
Wheel Hex Size
12mm
Final Drive Ratio
45.6:1
Motor Type
Brushed
Speed Control
Included
Wheelbase
12.3" (312 mm)
Battery
Sold Separately
Connector Type
IC3
Ground Clearance
2.5 in (63.5mm)
Internal Gear Ratio
45.6:1
Motor Size
540
Product Length
20.75" (527 mm)
Spur Gear
52T
Steering Type
2WS
Suspension
Multi-Link Solid Axle
Wheel Width
1 in (25.4mm)
