Axial - Item No. AXI90104V2
4.7 out of 5 Customer Rating

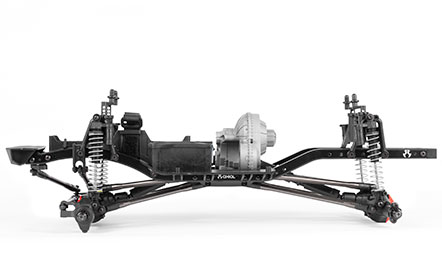

1/10 SCX10 II 4WD Raw Builders Kit V2

  • (1) Axial SCX10 II Raw Builders Kit
  • (1) User Manual
  • 1/10 Body, Tires, and Wheels
  • Motor, Steering Servo, ESC, and Radio System
  • (1) 2S LiPo Battery OR (1) 6S NiMH Battery
  • (1) Compatible LiPo Charger
  • (4) AA Batteries


Start with your favorite scale trail chassis — the Axial® SCX10™ II. Top it off with electronics and your choice of body, tires, and wheels. Now you’ve got a custom rig with proven performance and a look that’s all yours: the Axial SCX10 II Raw Builder’s Kit!

In 2008 Axial introduced its first SCX10 as a builder’s kit that avoided the technical hurdles of scratch-building. Scale trail enthusiasts could focus their attention on other things, like visually personalizing their rig. The SCX10 chassis platform proved to be a highly effective driving machine. Standout features included an all-metal twin C-channel frame, solid transmission, and axles with realism and capabilities to match.

With the SCX10 II, Axial kept the essence of the SCX10 and its metal frame rail chassis, but added scale AR44™ high pinion axles, a chassis-mounted servo, redesigned transmission, front mounted battery tray, all aluminum suspension links, suspension designed for nearly zero bump steer, and more.

These are some of the features that make the SCX10 II optimized for performance. Now, with the Raw Builder’s Kit version, you can drive a machine that’s as personal as it is capable!

AR44™ Single Piece Axles
AR44™ Single Piece Axles

  • Single piece axle housing for strength.
  • Small pumpkin for increased clearance and scale realism.
  • Optimized gear ratio (3.75) for reduced torque twist.
  • High pinion gears for added ground clearance, better driveshaft angles, and increased durability.
AX10™ Transmission
AX10™ Transmission

  • Scale looks on the outside — strong, all-metal Axial® gears on the inside!
  • Mimics a real transmission with bell housing, oil pan, and 4X4 transfer case.
  • 56T spur gear and 15T pinion — 32-pitch for durability.
  • Final drive ratio (FDR) 40.44 with a range from 33.69 - 54.15.
  • Efficient driveline with improved driveshaft angles to reduce stress on moving parts.
  • Includes a full set of ball bearings.
AR44™ Universal Axle Set
AR44™ Universal Axle Set

  • Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.
  • Hardened steel construction.
All Aluminum Suspension Links

  • All links are metal, including the steering.
  • 4-Link rear suspension geometry reduces axle steer and torque twist.
  • Custom tapered center – flared ends design.
  • Large M4 rod ends.
  • Gray anodized aluminum.
CMS (Chassis Mounted Servo)
CMS (Chassis Mounted Servo)

  • Servo is moved from the top of the axle onto the chassis, just as a full-size truck's steering box is located on the frame.
  • Enhances scale looks with proper suspension geometry.
  • Anodized aluminum links included with M4 rod ends.
  • Adjustable servo mounting system allows a wide range of servos to be used.
  • Properly designed suspension for nearly zero bump steer.


Sold Separately
Ground Clearance
3.0 in (77mm)
Product Length
19.25" (489 mm)
Solid Axle
SCX10, C-Channel Steel
Completion Level
Drive Type
Product Height
9.4" (239 mm)
Power Type
Sold Separately
Speed Control
Sold Separately
11.4" (290 mm)
Bevel Gear 30T/8T
Sold Separately
Shock Type
Coil-Over 2.4 - 3.5 in (61-90mm)
Sold Separately
Product Weight
4.0 lb (1.81kg)
Vehicle Type
Rock Crawler
Approximate Assembly Time
5-7 Hours
Sold Separately
Product Width
8.9" (226 mm)
Sold Separately
